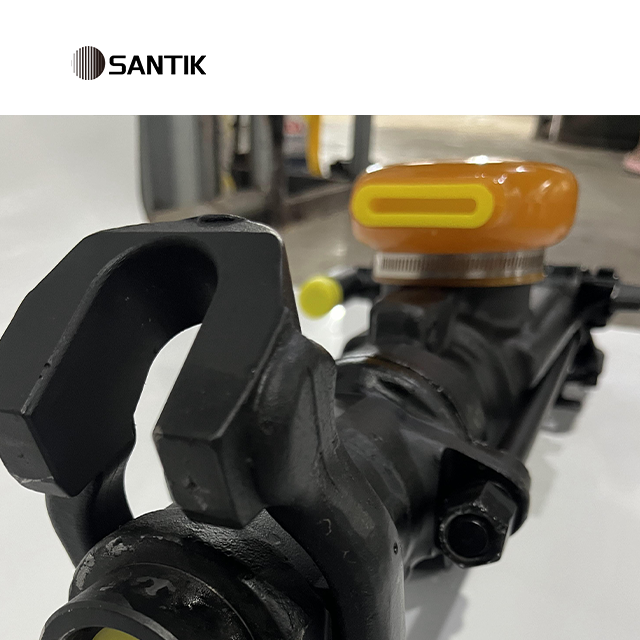

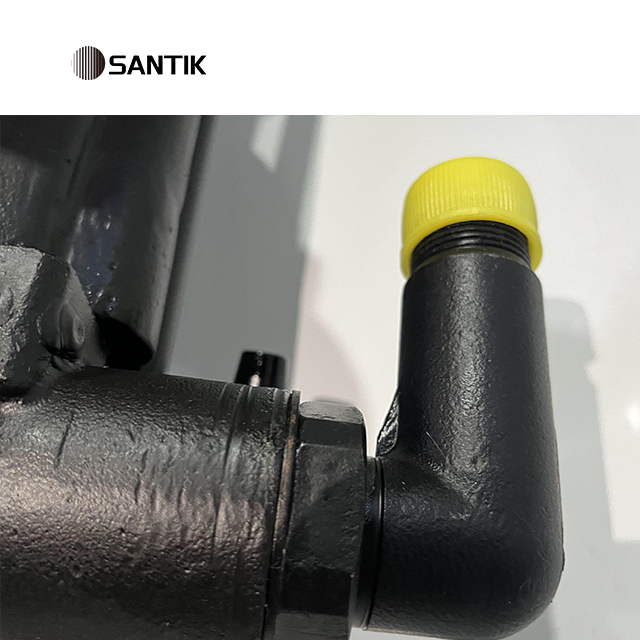

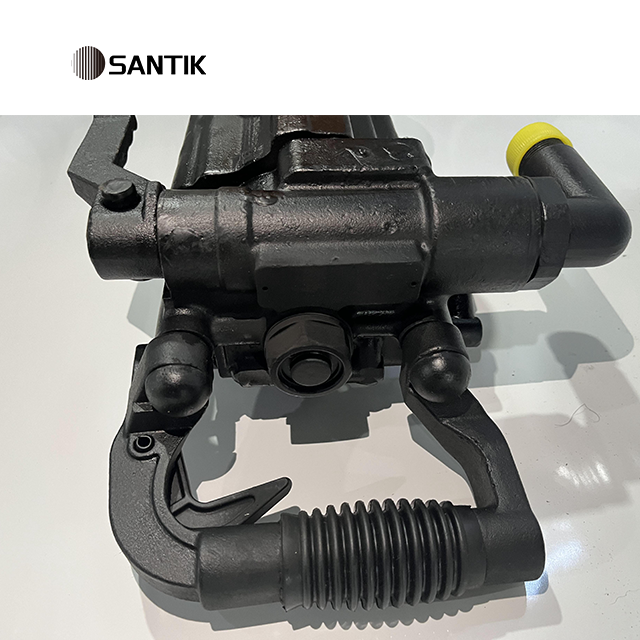

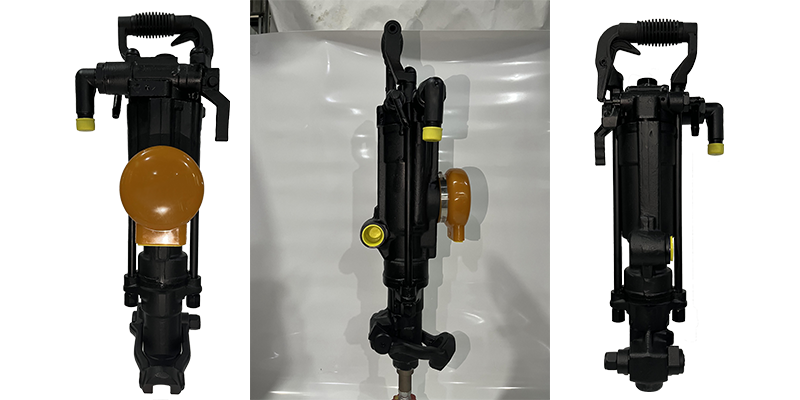

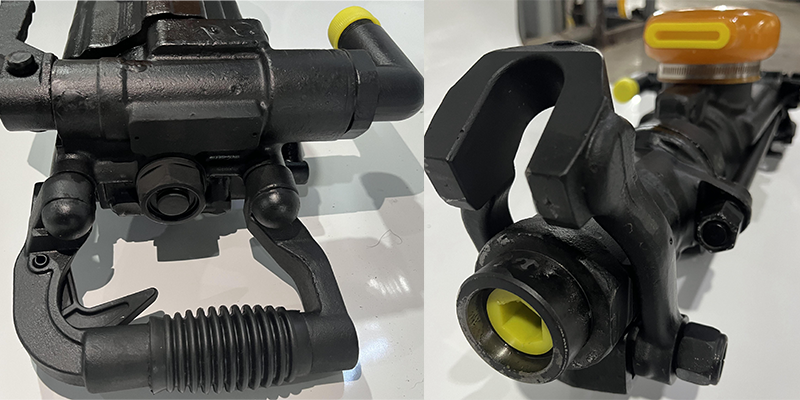

The YT30 Pneumatic Leg Rock Drill is a heavy-duty rock drilling machine featuring high efficiency and low energy consumption. It is particularly suitable for construction projects such as railways, highways, and hydropower and serves as an upgraded solution for rock drilling operations in tunnel excavation for the metallurgy and coal mining industries.

The YT30 model is designed for drilling horizontal and inclined holes in medium-hard to hard rock (f=8~18). It is typically used for drilling blast holes with a diameter of 34–45 mm and an optimal economic drilling depth of 5 meters. Depending on the tunnel cross-section and working conditions, it can be equipped with the FT160A pneumatic leg, SF160C long pneumatic leg, or SF160B short pneumatic leg. For metal mining applications, it can also be paired with the FT170 pneumatic leg. Additionally, it can be mounted on drilling rigs or frames for both dry and wet drilling operations.

Parameter	Value
Cylinder Diameter	82 mm
Piston Stroke	60 mm
Working Air Pressure	0.40-0.63 MPa
Torque (at 0.63 MPa)	≥20 N·m (0.63 MPa)
Torque (at 0.5 MPa)	≥17 N·m (0.5 MPa)
Torque (at 0.4 MPa)	≥15 N·m (0.4 MPa)
Water Pressure	0.1-0.15 MPa lower than air pressure
Air Hose Inner Diameter	25 mm
Water Hose Inner Diameter	13 mm
Drilling Diameter	34~45 mm
Max Drilling Depth	5 m
Operating Temperature	-30~45 ℃
Shank size	H22×108±1 mm
Oiler Model	FY250C
Cylinder Diameter (Leg)	65 mm
Weight	17 kg
FT160B Short air Leg	FT160B (Short air Leg)
Leg Length	1428 mm
Feeding Stroke	1098 mm
Cylinder Diameter (Leg)	65 mm
Weight	16 kg
FT160C Long air Leg	FT160C (Long air Leg)
Leg Length	1820 mm
Feeding Stroke	1490 mm
Cylinder Diameter (Leg)	65 mm
Weight	18 kg
FT170 air Leg	FT170 air leg
Leg Length	1668 mm
Feeding Stroke	1338 mm
Cylinder Diameter (Leg)	67 mm
Weight	18 kg
