Internal Combustion Rock Drills – YN27C & YN30

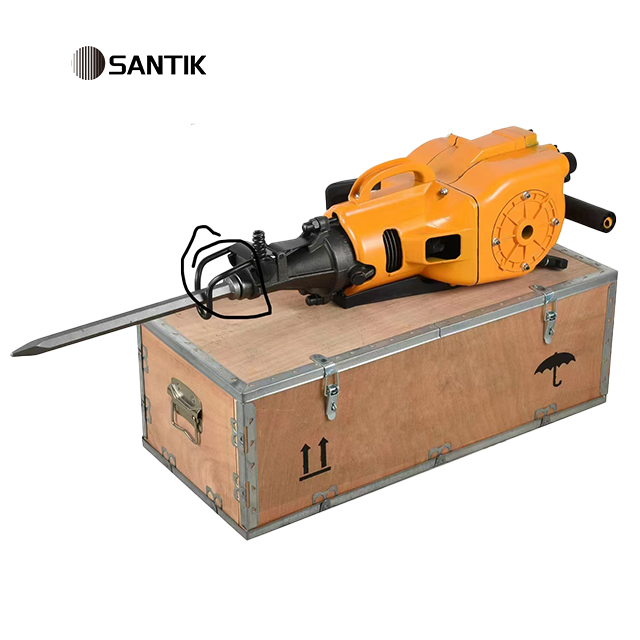

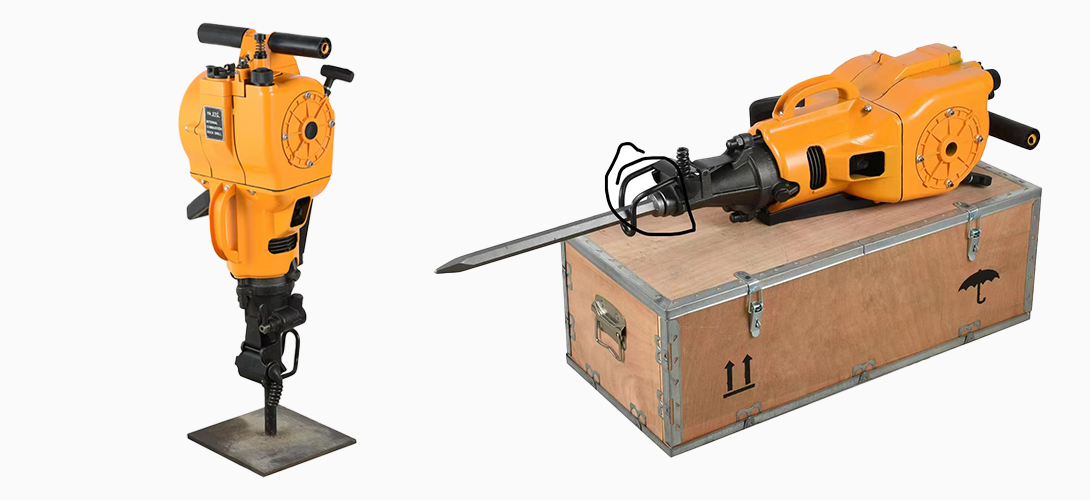

Our YN27C and YN30 internal combustion rock drills are gasoline-powered, portable drilling tools ideal for use in remote areas without electricity or external air compressors. Designed for tough environments, both models combine power, mobility, and durability for mining, construction, and emergency rescue applications.

Applications for Both Models

Mining and Quarrying

Road Construction and Maintenance

Tunnel and Bridge Projects

Emergency Rescue and Military Use

Off-grid Field Operations

All-in-One-Rock-Drill-with-Internal-Combustion-Engine-–-Easy-to-Operate-Anywhere-santik.png

Efficient-and-Reliable-Internal-Combustion-Rock-Drill-for-Field-Work-YN27-YN30-santik.png

Need a reliable rock drill for any terrain?

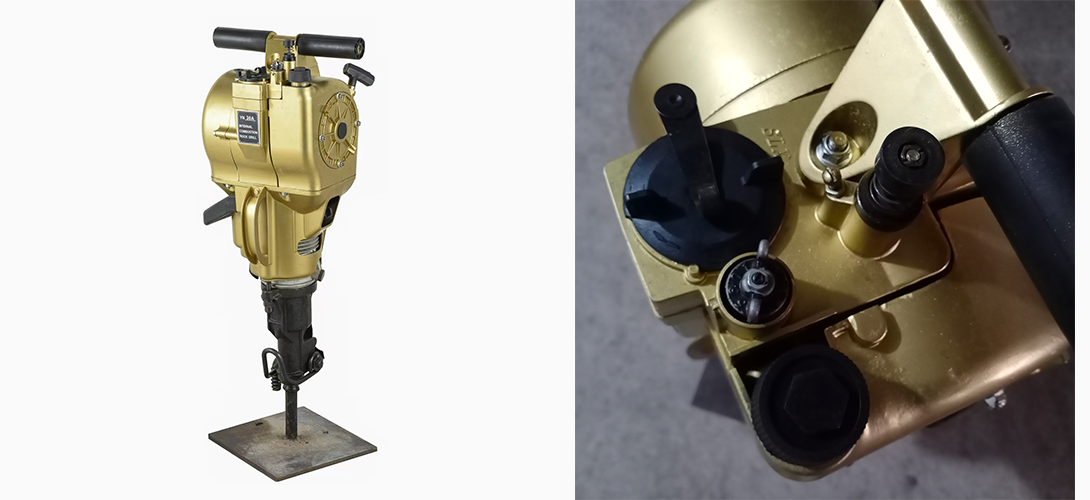

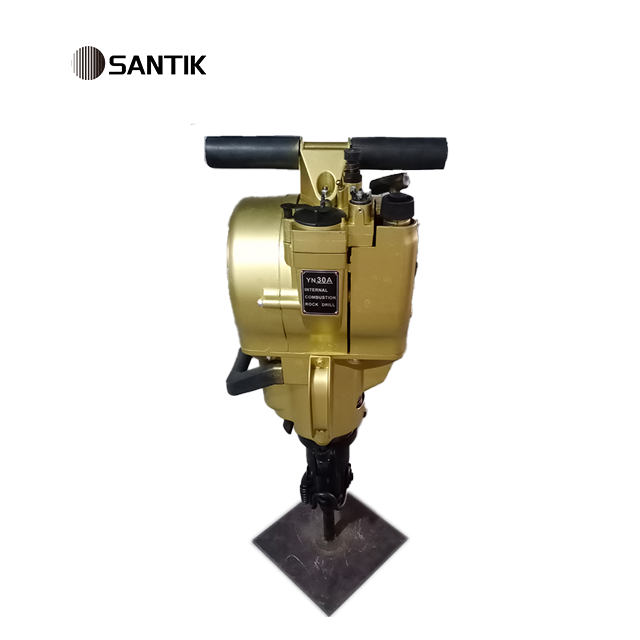

Choose YN27C for classic efficiency, or YN30 for upgraded power.

Drill anywhere — no air compressor required.

Drilling Machine Specifications

Specification	Detail
Weight of main machine	27kg
Overall dimensions	746X315X229mm
Type of engine	single cylinder、air cooled two strokes
Cylinder Diameter X stroke of piston	58X70mm
Rotating speed of engine	≥2450r/min
Displacement of engine piston	185cm³
Type of carburetor	hand needle valved、no floating type
Ignition system	controllable silicon、contactless system
Drilling speed	≥250mm/min (mean value of five holes)
Max drilling depth	6m
Fuel consumption	≤0.121/m
Tank capacity	≥1.14L
Mixture ratio of gasoline and lubricating oil	12:1 (in volumes)
End of drill rod dimensions	hexagonal 22x108mm
Rotating speed of drill rod	≥200r/min
Clearance of spark plug	0.5~0.7mm
