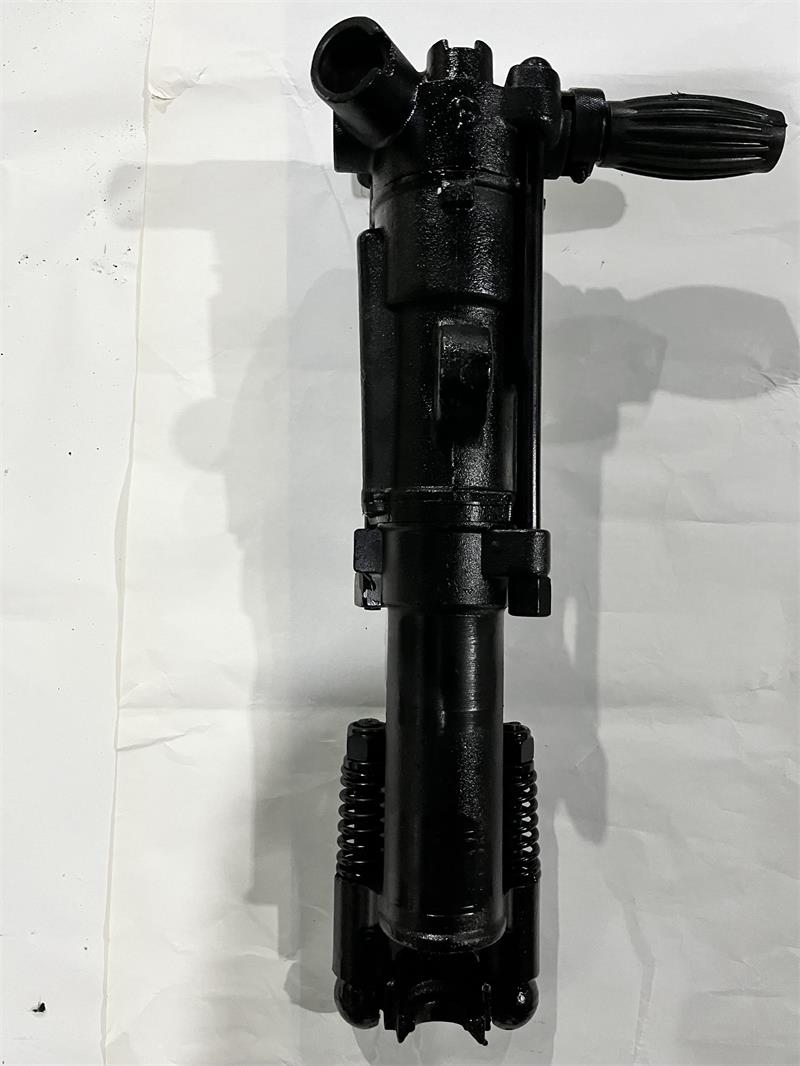

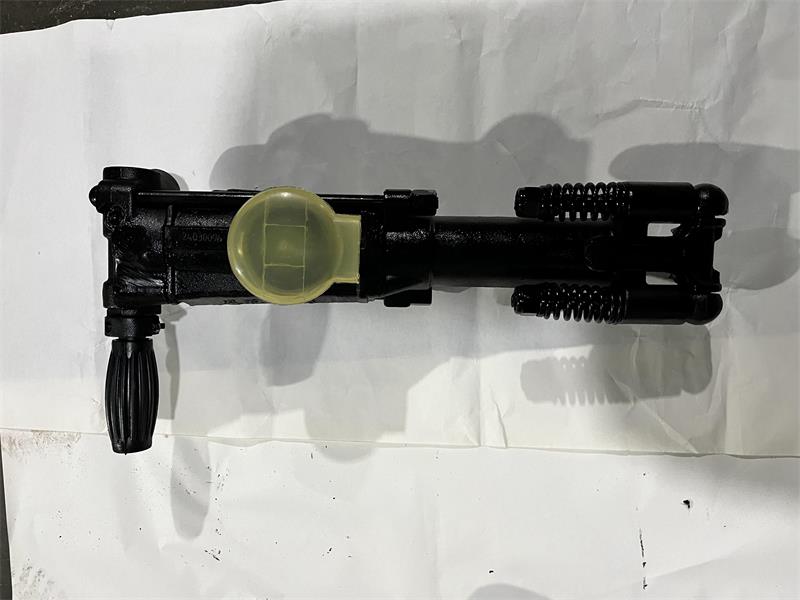

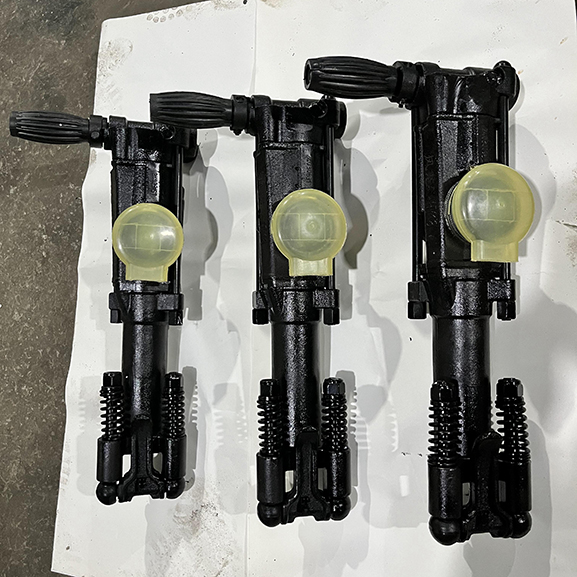

YO18 hand held core drill-Handheld rock drill-Santik (Shenyang) Mining Equipment Co., Ltd.

The YO18 is used for drilling blast holes and other rock drilling work in quarries, small mines, and other construction projects. It is suitable for drilling horizontal, vertical, and inclined blast holes in medium-hard and hard rock. When equipped with the FT-100 air leg, it can drill blast holes in various orientations and angles. The recommended drill hole diameter is φ36-42mm, with a hole depth of 1.5-2 meters, and the maximum depth can reach 5 meters.

NOTES：The air pressure should be maintained at 0.4-0.5 MPa for optimal performance. When drilling high-hardness rocks, the air pressure can be slightly increased. If the air pressure reaches the upper limit of 0.6 MPa, the machine vibration increases, making it difficult to operate. While the machine can still operate stably with an air pressure below 0.4 MPa, the efficiency will be lower.

	YO18(18PA)
Weight(kg)	18
Length(mm)	550
Cylinder Diameter(mm)	58
Piston stroke(mm)	45
Working pressure(Mpa)	0.4~0.5
Water Pressure(Mpa)	0.2~0.3
Air Pipe Inner Diameter(mm)	19
Water Pipe Inner Diameter(mm)	8
Air consumption(L/s)	≤20
Impact energy(J)	≥17J (2.5kgf.cm)
Impact frequency(HZ)	≥30
Drilling Diameter(mm)	36~42
Maximum Drilling Depth(m)	5
Shank Size(mm)	H22*108±1

FAQs：

Do you accept customize? Yes, we have our own factory.

Can you print our logo or company name? Yes, we could print your logo or company name on the display or the machine shells.

Can you design for us? Yes, we have professional designer, please tell us your requirements, well do it for you.

Is it possible to get a sample at a special price? Yes, to demonstrate our confidence in our machines, we can offer distributors a sample machine at a very favorable price to support their initial advertising efforts.

How to operate? We offer three methods: All machines come with a manual that guides you on assembly, adjustment, and usage. Our sales staff will provide one-on-one assistance. you can download the operation manual from the Download Center on our website.

What is the delivery time? The delivery time for 30 sets of machines is about 5 days, and for up to 100 sets, it is within 15 days. For 300 sets, the delivery time is within 1 month. Larger quantities will require communication to confirm the exact delivery date.

What is the warranty period? The warranty is one year (excluding normal wear and tear of parts.

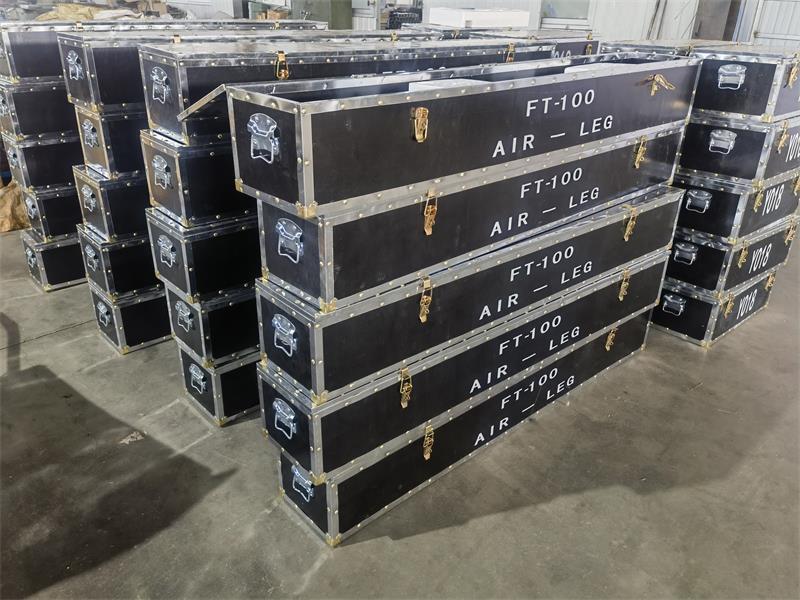

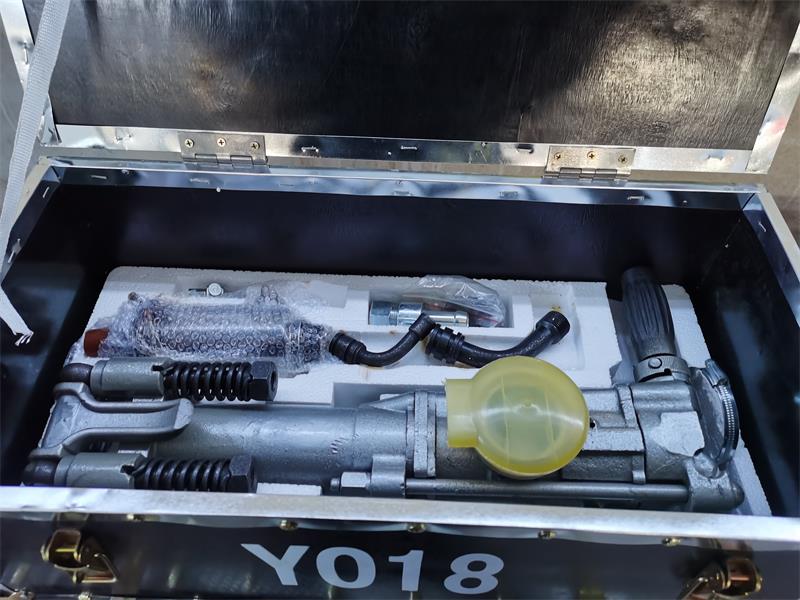

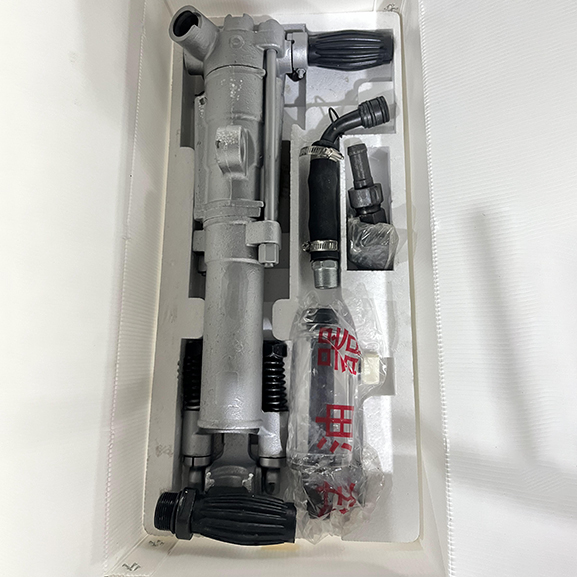

What is the product packaging? Professional export packaging, including wooden boxes and cartons.
