YT28 air leg rock drill-Air leg rock drill-Santik (Shenyang) Mining Equipment Co., Ltd.

Features：

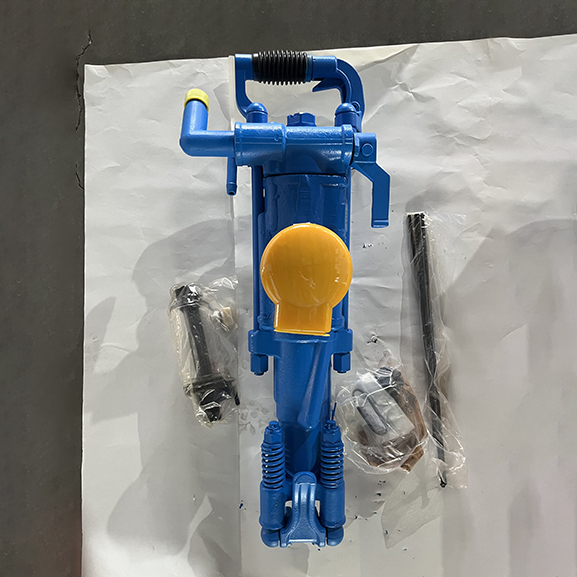

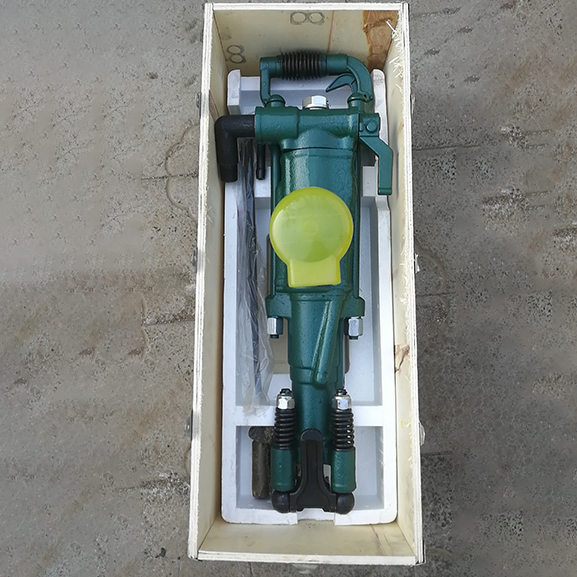

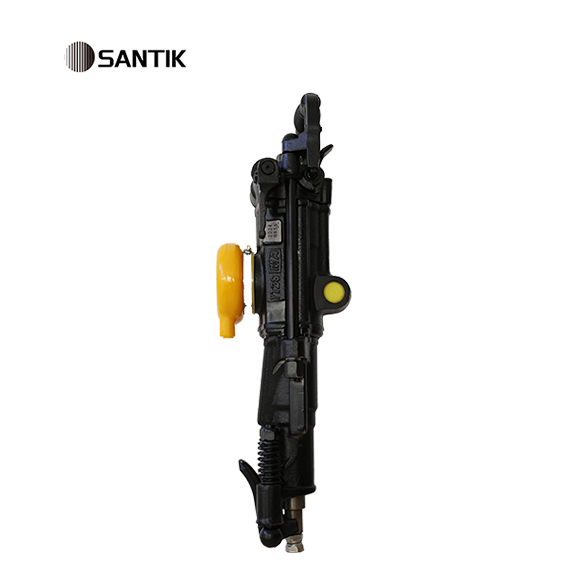

The YT28 rock drill is a highly versatile air leg rock drill, primarily used for rock drilling in tunnel projects and mine tunnel excavation. It is compatible with the FY200C oiler and the FT160BC (or FT160BD) air leg, enabling wet drilling on medium-hard and hard rocks, and drilling horizontal and inclined blast holes. When the air leg is removed, it can also be mounted on a trolley for operation.

1.High Drilling Efficiency: The YT28 is known for its excellent impact force and high drilling speed, making it ideal for large-scale mining operations.

2.Reliable and Durable: Built for tough environments, it offers a long service life, reducing the need for frequent replacements.

3.Ergonomic Design: The operator-friendly design reduces fatigue, ensuring comfort and better control during extended periods of operation.

Model	YT28
Weight(kg)	26
Cylinder Diameter(mm)	80
Piston stroke(mm)	60
Working pressure(Mpa)	0.4~0.63
Water Pressure(Mpa)	Air pressure-0.1~0.15
Impact ferquency(Hz)	≥36（0.63Mpa）
Impact energy(J)	≥70（0.63Mpa）
Air Pipe Inner Diameter(mm)	25
Water Pipe Inner Diameter(mm)	13
Drilling speed(mm/min)	≥300
Drilling Diameter(mm)	34-42
Maximum Drilling Depth(m)	5
Shank Size(mm)	Hex.H22x108

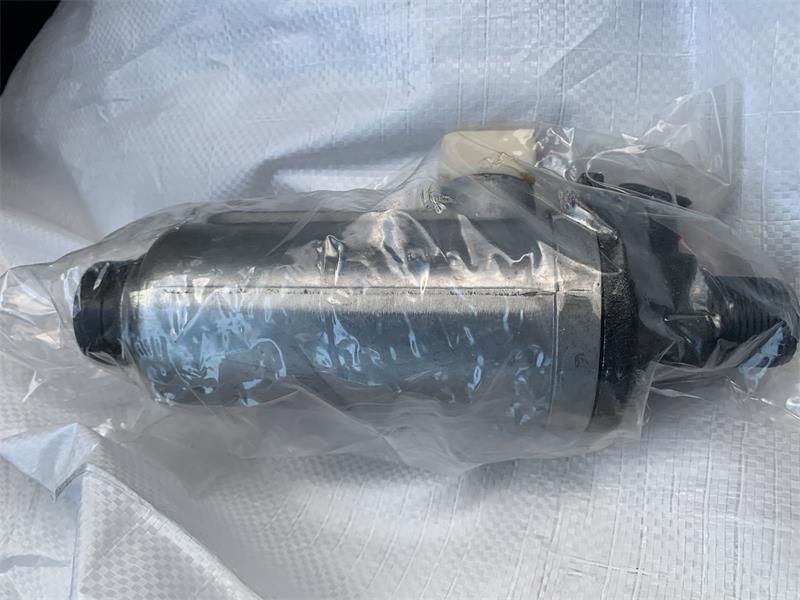

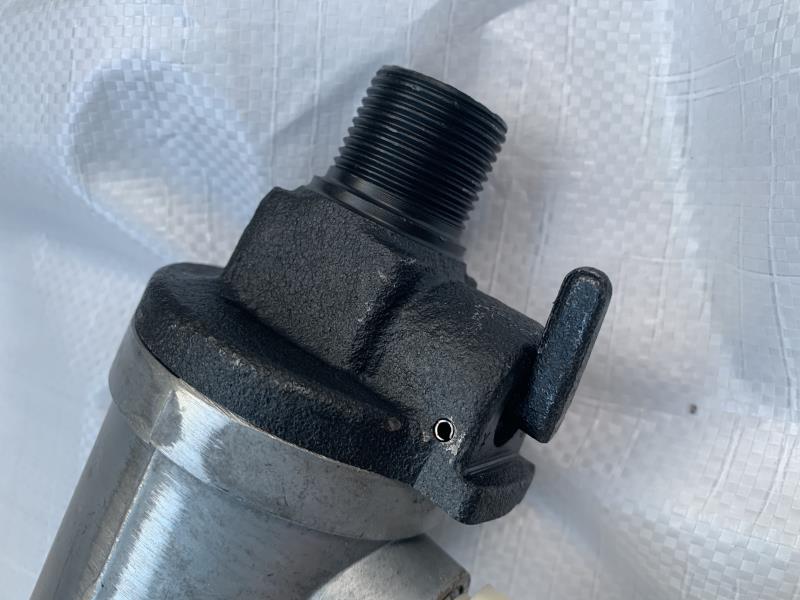

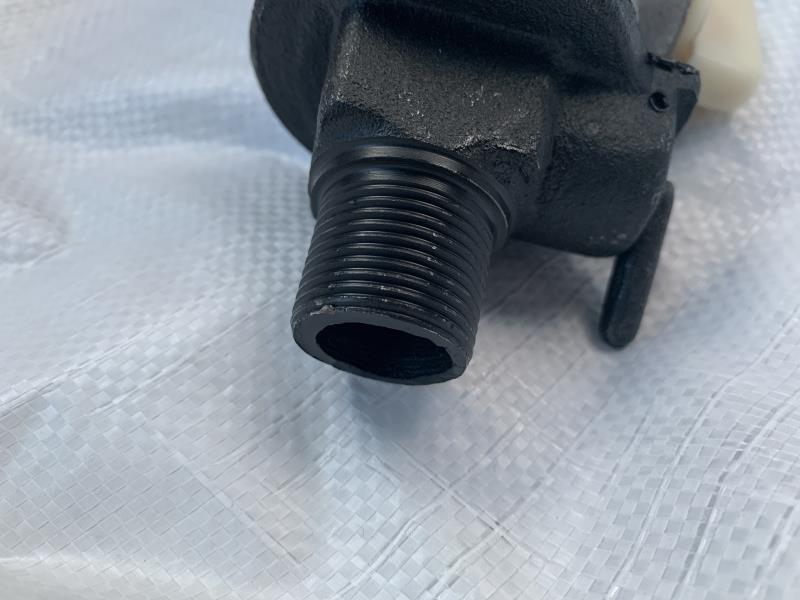

FY200C Lubricator
Weight	1.2		kg
Oil volume	0.2		L
Air leg
	FT160BC	FT160BD
Length	1800	1400	mm
Feed length	1365	965	mm
cylinder inner diameter	65	65	mm
Weight	≈16.9	≈14.4	kg

FAQs：

Do you accept customize? Yes, we have our own factory.

Can you print our logo or company name? Yes, we could print your logo or company name on the display or the machine shells.

Can you design for us? Yes, we have professional designer, please tell us your requirements, well do it for you.

Is it possible to get a sample at a special price? Yes, to demonstrate our confidence in our machines, we can offer distributors a sample machine at a very favorable price to support their initial advertising efforts.

How to operate? We offer three methods: All machines come with a manual that guides you on assembly, adjustment, and usage. Our sales staff will provide one-on-one assistance. you can download the operation manual from the Download Center on our website.

What is the delivery time? The delivery time for 30 sets of machines is about 5 days, and for up to 100 sets, it is within 15 days. For 300 sets, the delivery time is within 1 month. Larger quantities will require communication to confirm the exact delivery date.

What is the warranty period? The warranty is one year (excluding normal wear and tear of parts.

What is the product packaging? Professional export packaging, including wooden boxes and cartons.
