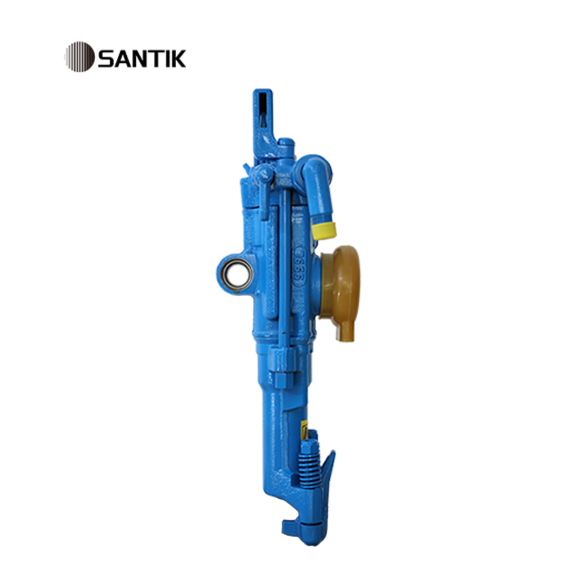

YT23 Pneumatic rock drill-Air leg rock drill-Santik (Shenyang) Mining Equipment Co., Ltd.

Features：

The YT23 performs well under low-pressure conditions, making it suitable for use with long air supply pipelines or when powered by a small air compressor. It is compatible with the FY200A oiler and the FT160A air leg, enabling wet drilling on medium-hard and hard rock formations. It can drill horizontal and inclined blast holes, and when the air leg is removed, it can also be mounted on a trolley for operation.

1.High Efficiency: The YT23 offers excellent drilling performance with powerful impact energy and high rotation speed, allowing for rapid penetration in various rock formations.

2.Durability: Built with strong materials and a robust design, it is highly durable and reliable in tough mining conditions.

3.User-Friendly: The design is ergonomic, making it easier for operators to handle, reducing fatigue during extended use.

Model	YT23
Weight(kg)	24
Cylinder Diameter(mm)	76
Piston stroke(mm)	55
Working pressure(Mpa)	0.4~0.63
Water Pressure(Mpa)	0.3
Impact ferquency(Hz)	≥28
Impact energy(J)	≥45
Air Pipe Inner Diameter(mm)	25
Water Pipe Inner Diameter(mm)	13
Drilling speed(mm/min)	≥410
Drilling Diameter(mm)	34-42
Maximum Drilling Depth(m)	5
Shank Size(mm)	Hex.H22x108

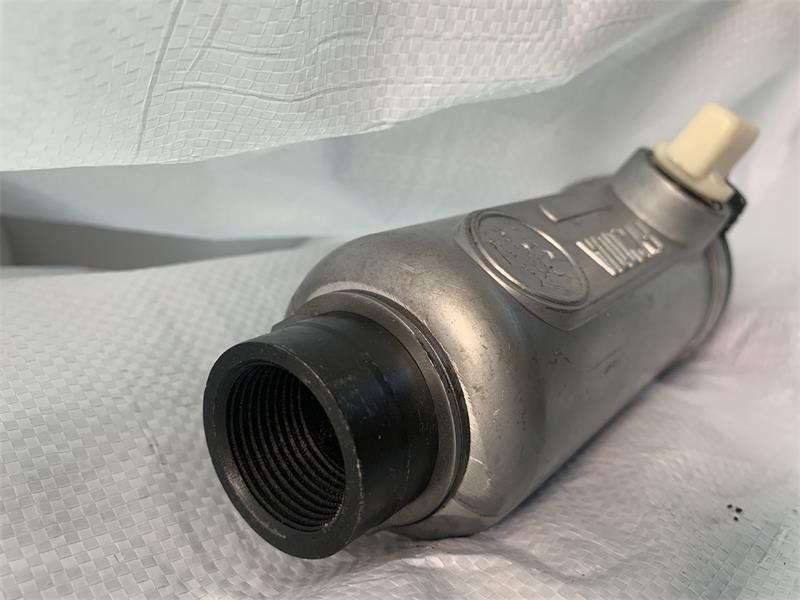

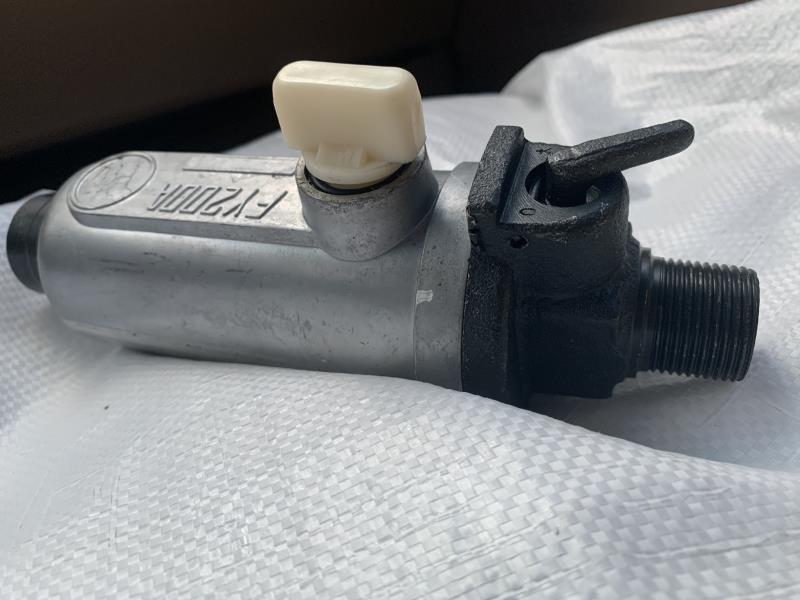

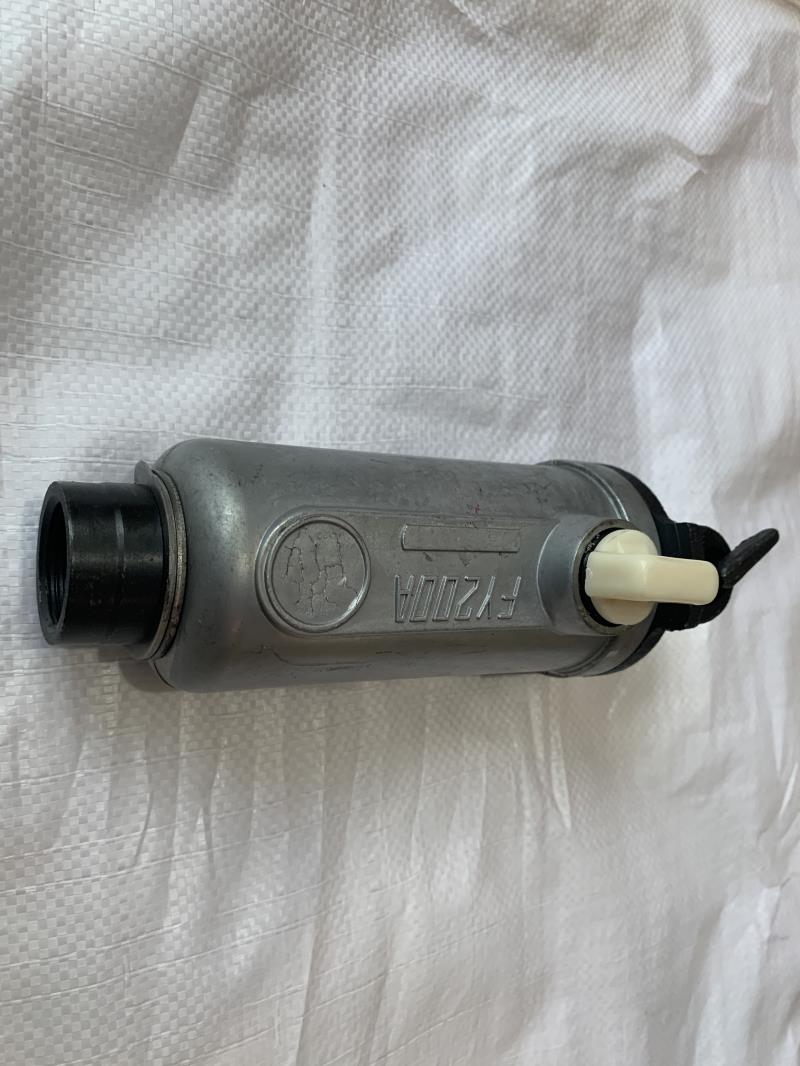

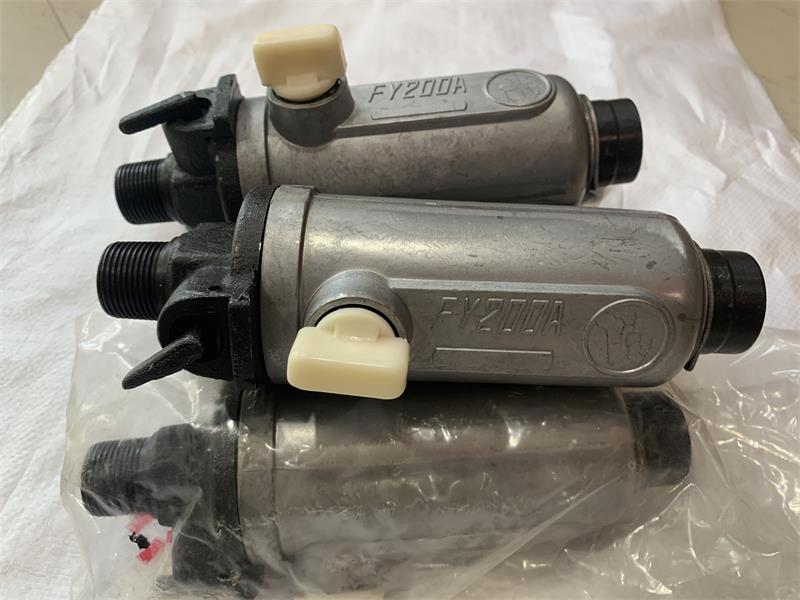

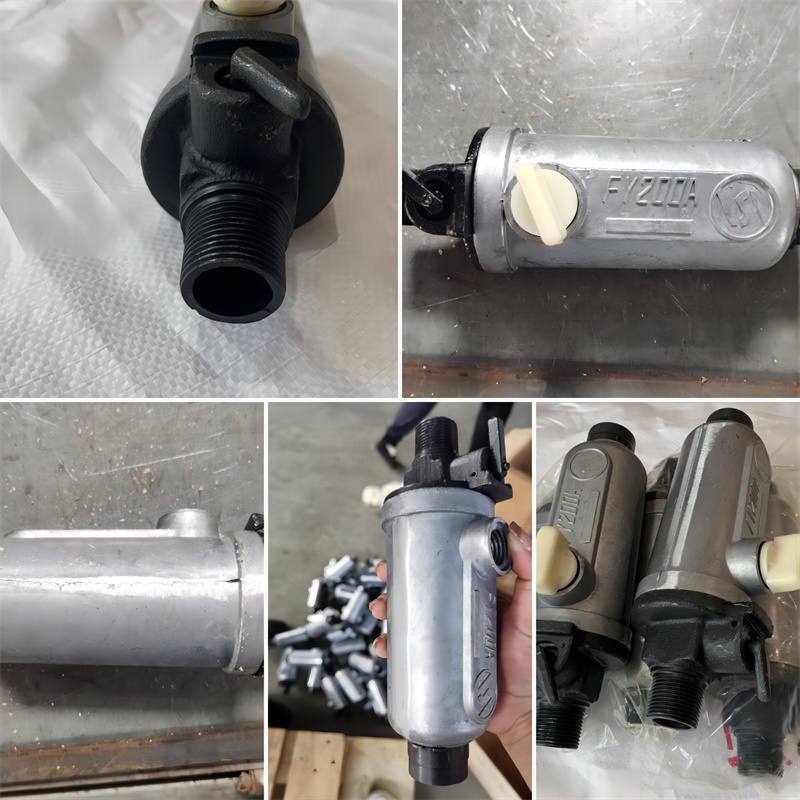

FY200A Lubricator
Weight	1.2			kg
Oil volume	0.2			L

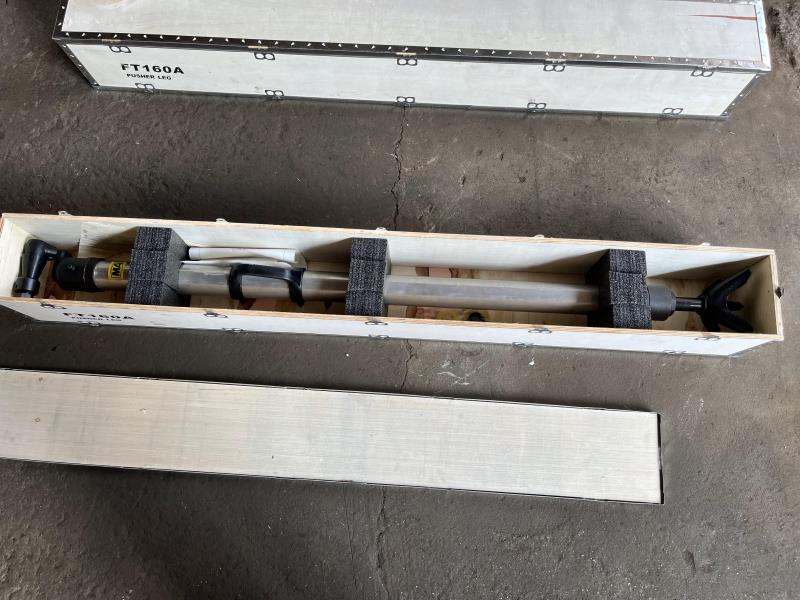

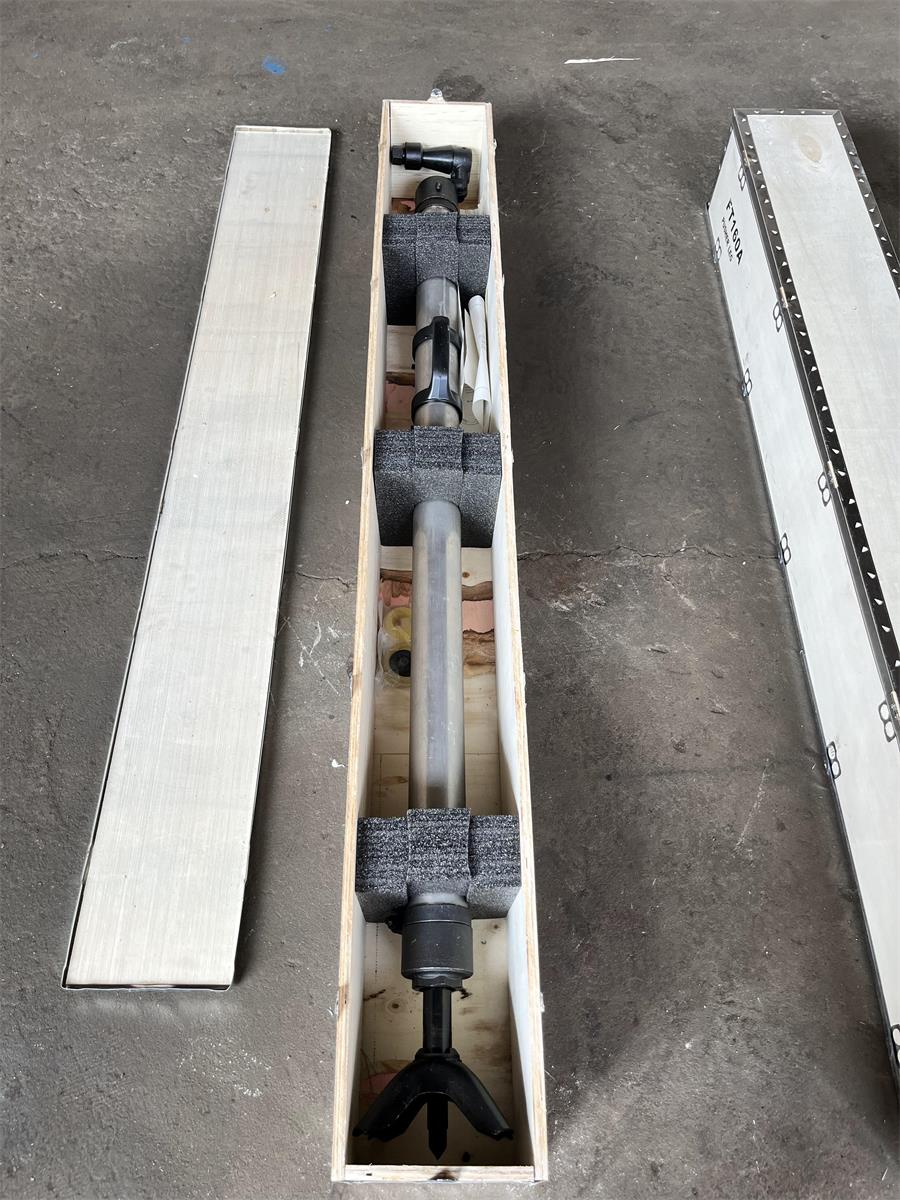

Air leg
	FT160A	FT160B	FT160C
Length	1668	1428	1820	mm
Feed length	1338	1098	1490	mm
cylinder inner diameter	65	65	65	mm
Weight	17	15	18	kg

FAQs：

Do you accept customize? Yes, we have our own factory.

Can you print our logo or company name? Yes, we could print your logo or company name on the display or the machine shells.

Can you design for us? Yes, we have professional designer, please tell us your requirements, well do it for you.

Is it possible to get a sample at a special price? Yes, to demonstrate our confidence in our machines, we can offer distributors a sample machine at a very favorable price to support their initial advertising efforts.

How to operate? We offer three methods: All machines come with a manual that guides you on assembly, adjustment, and usage. Our sales staff will provide one-on-one assistance. you can download the operation manual from the Download Center on our website.

What is the delivery time? The delivery time for 30 sets of machines is about 5 days, and for up to 100 sets, it is within 15 days. For 300 sets, the delivery time is within 1 month. Larger quantities will require communication to confirm the exact delivery date.

What is the warranty period? The warranty is one year (excluding normal wear and tear of parts.

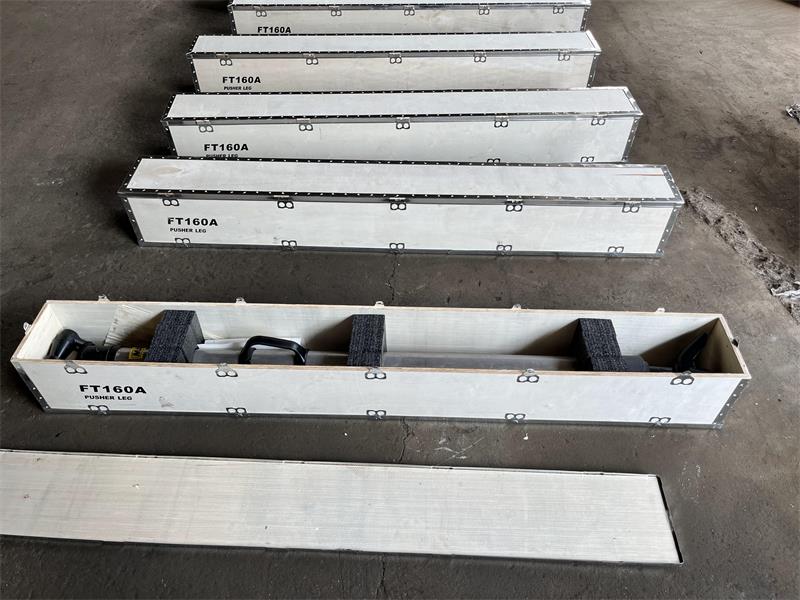

What is the product packaging? Professional export packaging, including wooden boxes and cartons.
