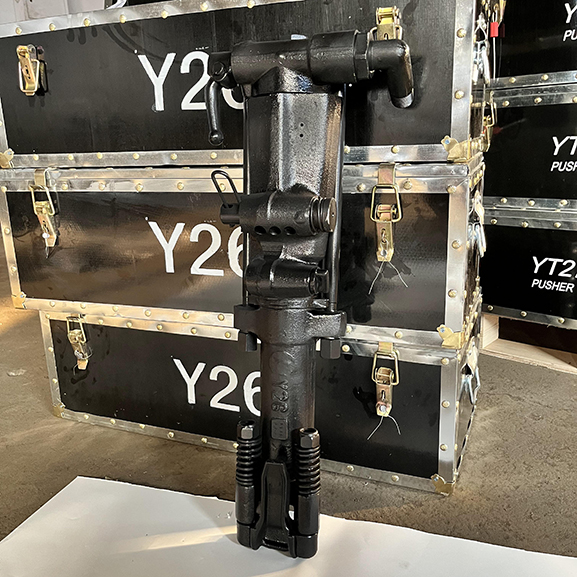

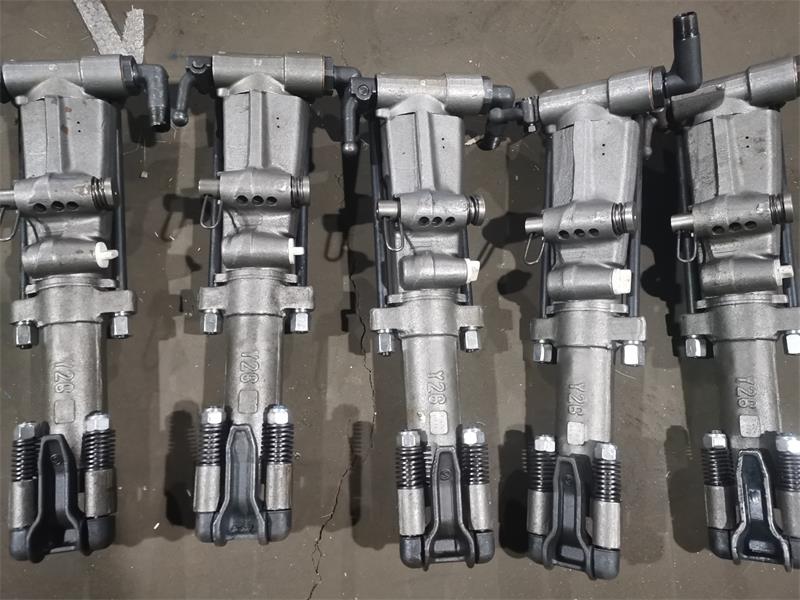

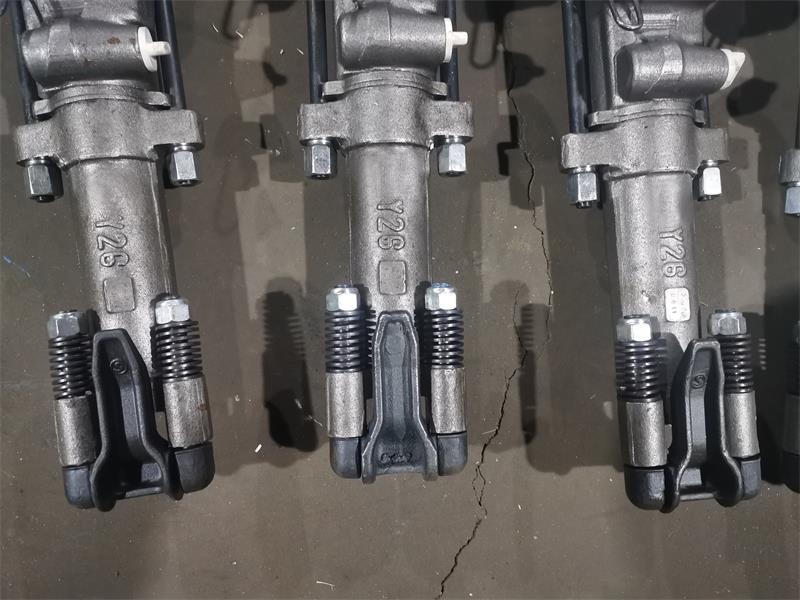

Y26 gas powered jack hammer-Handheld rock drill-Santik (Shenyang) Mining Equipment Co., Ltd.

The Y26/Y19A handheld rock drill is designed for drilling, secondary blasting, and other operations in mining, railway, and water conservancy projects. It is versatile for both dry and wet drilling on hard and medium-hard rock and can be used for vertical or inclined blast holes. For wet drilling, simply replace the air pipe nut with the water pipe nut and connect the water pipe.

The Y26 is normally used for dry drilling. When wet drilling is required, remove the air pipe nut. Replace it with the water pipe nut and the water pipe. Connect the water hose to the water pipe and turn on the water supply.

	Y26
Weight(kg)	26
Length(mm)	650
Cylinder Diameter(mm)	65
Piston stroke(mm)	70
Working pressure(Mpa)	0.4~0.5
Water Pressure(Mpa)
Air Pipe Inner Diameter(mm)
Water Pipe Inner Diameter(mm)
Air consumption(L/s)	≤47（at 0.4Mpa）
Air consumption(L/s)	≤50（at 0.5Mpa）
Impact energy(J)	≥30（at 0.4Mpa）
Impact energy(J)	≥48（at 0.5Mpa）
Impact frequency(HZ)	≥23（at 0.4Mpa）
Impact frequency(HZ)	≥27（at0.5Mpa）
Drilling Diameter(mm)	34~42
Maximum Drilling Depth(m)	5
Shank Size(mm)	H22x108±1/H25x108

FAQs：

Do you accept customize? Yes, we have our own factory.

Can you print our logo or company name? Yes, we could print your logo or company name on the display or the machine shells.

Can you design for us? Yes, we have professional designer, please tell us your requirements, well do it for you.

Is it possible to get a sample at a special price? Yes, to demonstrate our confidence in our machines, we can offer distributors a sample machine at a very favorable price to support their initial advertising efforts.

How to operate? We offer three methods: All machines come with a manual that guides you on assembly, adjustment, and usage. Our sales staff will provide one-on-one assistance. you can download the operation manual from the Download Center on our website.

What is the delivery time? The delivery time for 30 sets of machines is about 5 days, and for up to 100 sets, it is within 15 days. For 300 sets, the delivery time is within 1 month. Larger quantities will require communication to confirm the exact delivery date.

What is the warranty period? The warranty is one year (excluding normal wear and tear of parts.

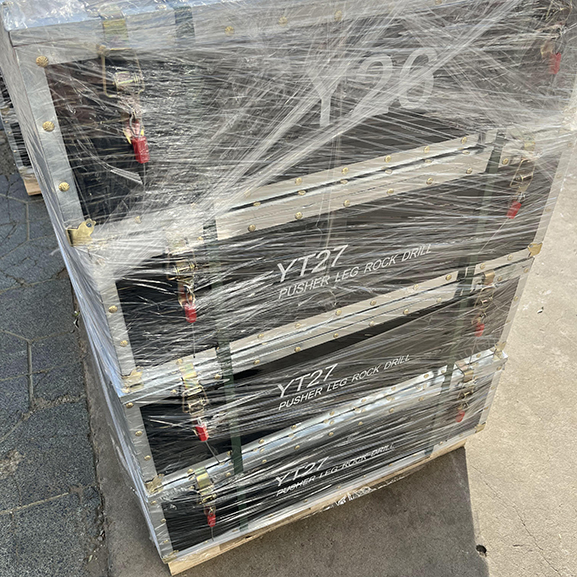

What is the product packaging? Professional export packaging, including wooden boxes and cartons.
