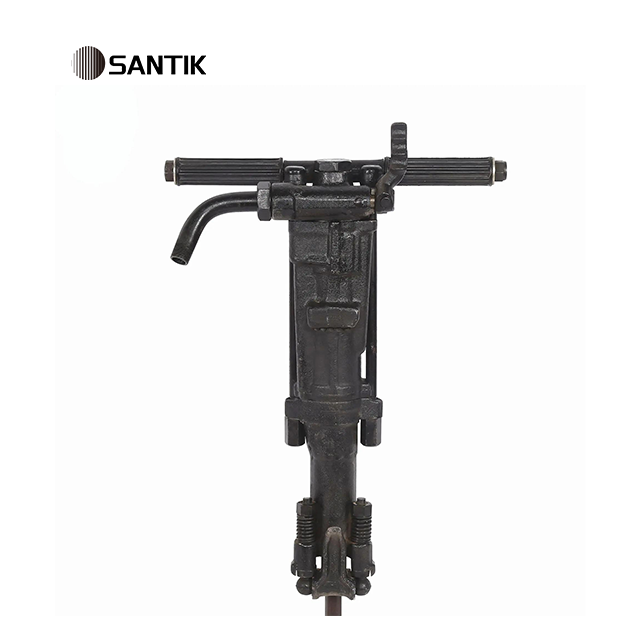

TY-24C hand drill machine-Handheld rock drill-Santik (Shenyang) Mining Equipment Co., Ltd.

The TY24C Pneumatic Manual Rock Drill is a lightweight, compact model designed with minimal recoil for safety. It is ideal for secondary breaking tasks, drilling into bedrock, and other similar operations. This type of pneumatic rock drill is primarily used in mines, railway projects, water irrigation works, and quarries for drilling holes. It is suitable for both wet and dry drilling in all types of rock.

1.The TY24C is suitable for drilling horizontal or tip-tilted blast holes in solid hard rocks, as well as vertical bolt holes on the roof. The blast hole diameter typically ranges from 32-46mm, and the effective drilling depth can reach up to 5 meters.

2.The TY24C pneumatic rock drill is designed for drilling holes with a diameter of 32-46mm, and the effective depth can reach 5 meters.

3.The TY24C manual rock drill can also be mounted on a drill rig or drill frame for drilling rocks, with or without water.

	TY-24C
Weight(kg)	27
Length(mm)	610
Cylinder Diameter(mm)	66.7
Piston stroke(mm)	68
Working pressure(Mpa)	0.5~0.63
Water Pressure(Mpa)
Air Pipe Inner Diameter(mm)	19
Water Pipe Inner Diameter(mm)
Air consumption(L/s)	≤45
Impact energy(J)
Impact frequency(HZ)
Drilling Diameter(mm)	32~46
Maximum Drilling Depth(m)	5
Shank Size(mm)	H22*108±1

FAQs：

Do you accept customize? Yes, we have our own factory.

Can you print our logo or company name? Yes, we could print your logo or company name on the display or the machine shells.

Can you design for us? Yes, we have professional designer, please tell us your requirements, well do it for you.

Is it possible to get a sample at a special price? Yes, to demonstrate our confidence in our machines, we can offer distributors a sample machine at a very favorable price to support their initial advertising efforts.

How to operate? We offer three methods: All machines come with a manual that guides you on assembly, adjustment, and usage. Our sales staff will provide one-on-one assistance. you can download the operation manual from the Download Center on our website.

What is the delivery time? The delivery time for 30 sets of machines is about 5 days, and for up to 100 sets, it is within 15 days. For 300 sets, the delivery time is within 1 month. Larger quantities will require communication to confirm the exact delivery date.

What is the warranty period? The warranty is one year (excluding normal wear and tear of parts.

What is the product packaging? Professional export packaging, including wooden boxes and cartons.
