YT27 rock drill-Air leg rock drill-Santik (Shenyang) Mining Equipment Co., Ltd.

Features：

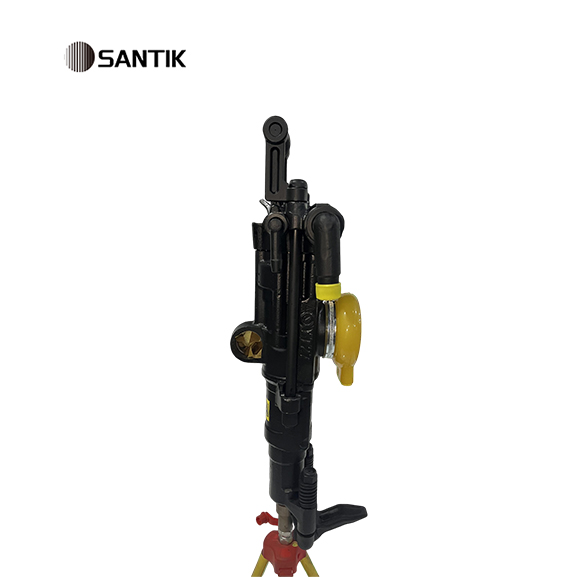

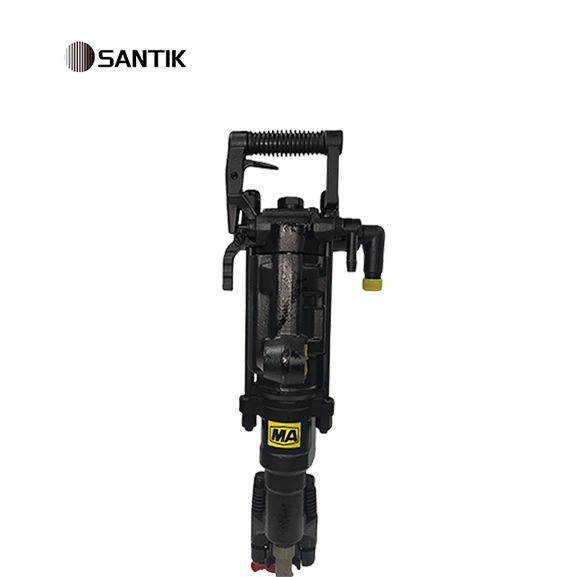

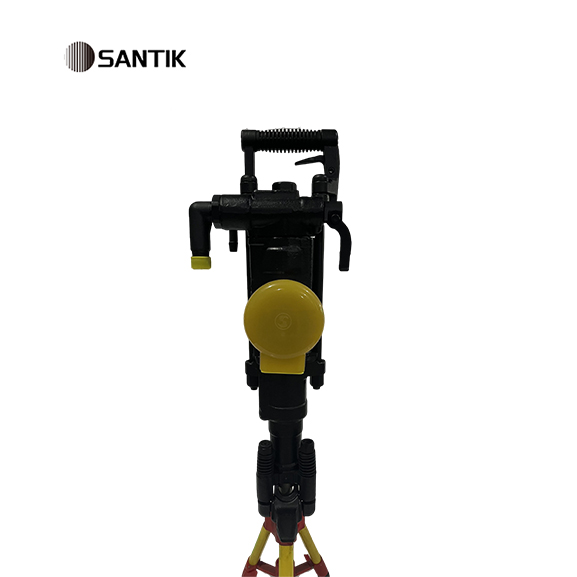

The YT27 rock drill is a new high-efficiency air leg rock drill, primarily used for rock drilling in tunnel excavation in mining operations. It is also widely used as a drilling tool in railway, water conservancy, and national defense stone engineering projects. It is compatible with the FY250 oiler and the FT160A air leg, enabling wet drilling on medium-hard and hard rocks, and drilling horizontal and inclined blast holes. When the air leg is removed, it can also be mounted on a trolley for operation.

1.Powerful Impact Force: The YT27 provides a strong impact energy, making it effective in drilling hard rock formations and increasing efficiency.

2.Sturdy Construction: Designed for heavy-duty use, it is highly durable and performs well in extreme mining conditions.

3.Easy Maintenance: The YT27 is easy to maintain, helping to minimize downtime and ensure consistent productivity.

Model	YT27
Weight(kg)	27
Cylinder Diameter(mm)	80
Piston stroke(mm)	60
Working pressure(Mpa)	0.4~0.63
Water Pressure(Mpa)	0.2-0.3
Impact ferquency(Hz)	≥40（0.63Mpa）
Impact energy(J)	≥70（0.63Mpa）
Air Pipe Inner Diameter(mm)	25
Water Pipe Inner Diameter(mm)	13
Drilling speed(mm/min)	≥300
Drilling Diameter(mm)	34-42
Maximum Drilling Depth(m)	5
Shank Size(mm)	Hex.H22x108

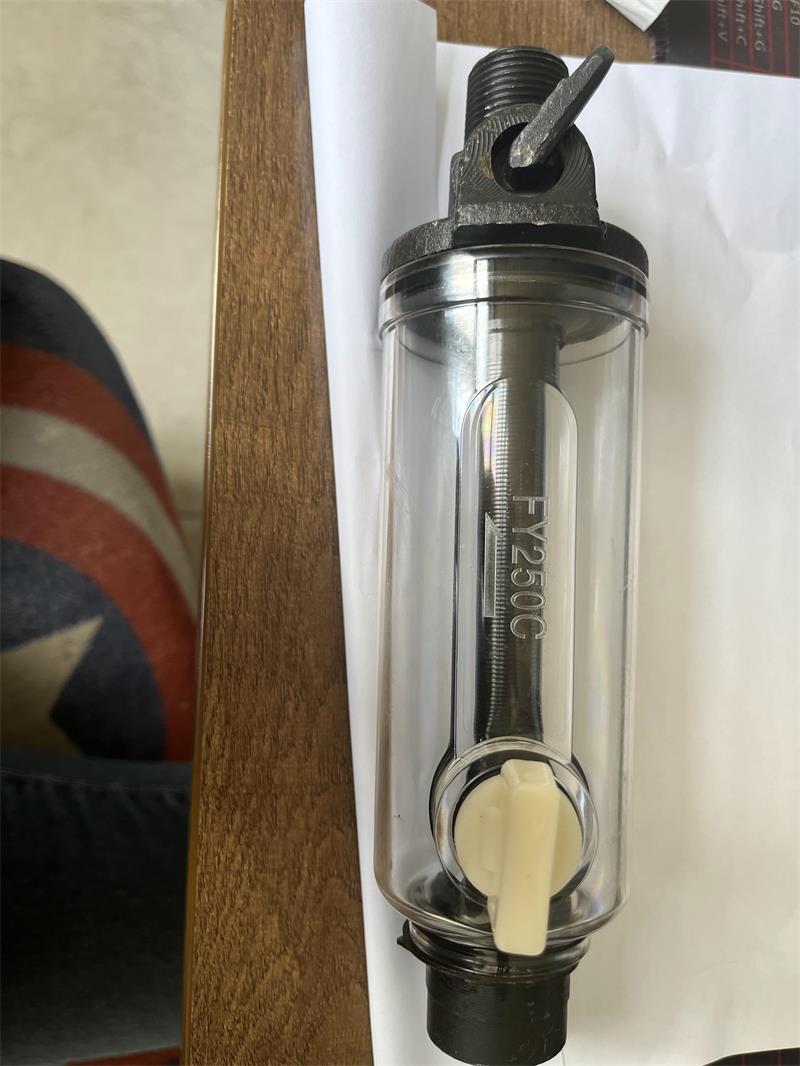

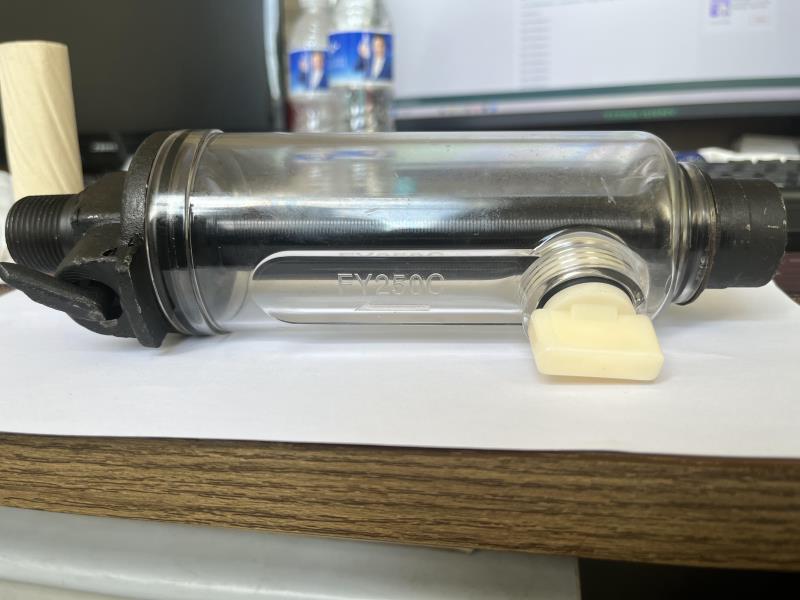

FY250 Lubricator
Weight	1.2			kg
Oil volume	0.25			L
Air leg
	FT160A	FT160B	FT160C
Length	1668	1428	1820	mm
Feed length	1338	1098	1490	mm
cylinder inner diameter	65	65	65	mm
Weight	17	15	18	kg

FAQs：

Do you accept customize? Yes, we have our own factory.

Can you print our logo or company name? Yes, we could print your logo or company name on the display or the machine shells.

Can you design for us? Yes, we have professional designer, please tell us your requirements, well do it for you.

Is it possible to get a sample at a special price? Yes, to demonstrate our confidence in our machines, we can offer distributors a sample machine at a very favorable price to support their initial advertising efforts.

How to operate? We offer three methods: All machines come with a manual that guides you on assembly, adjustment, and usage. Our sales staff will provide one-on-one assistance. you can download the operation manual from the Download Center on our website.

What is the delivery time? The delivery time for 30 sets of machines is about 5 days, and for up to 100 sets, it is within 15 days. For 300 sets, the delivery time is within 1 month. Larger quantities will require communication to confirm the exact delivery date.

What is the warranty period? The warranty is one year (excluding normal wear and tear of parts.

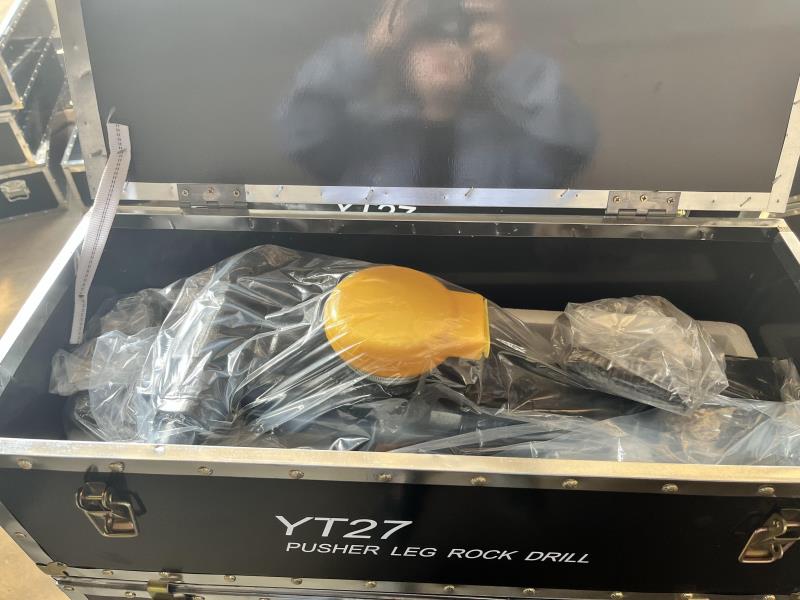

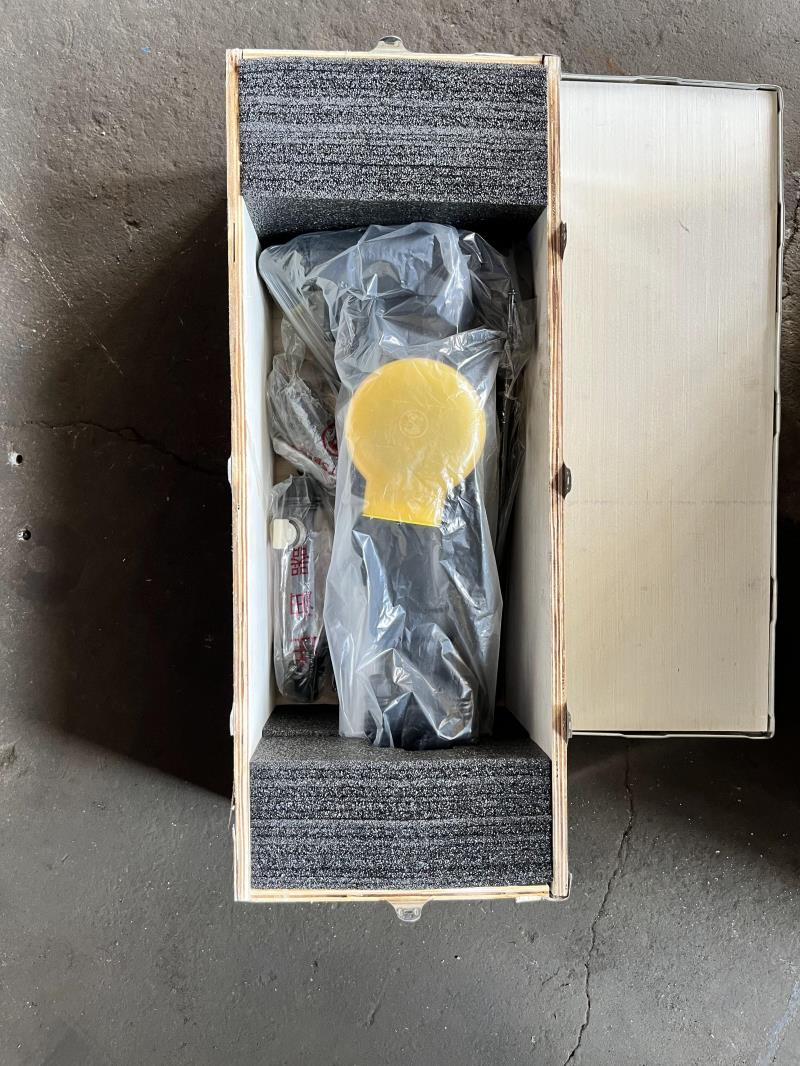

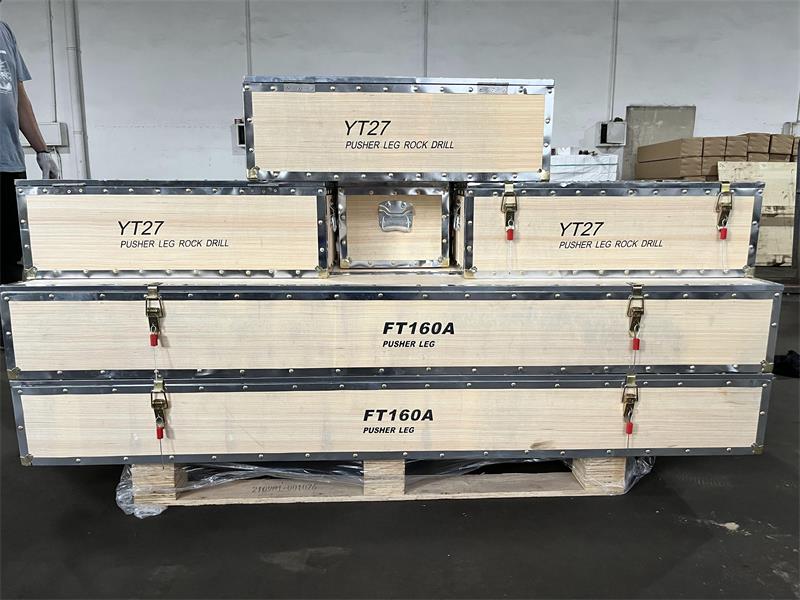

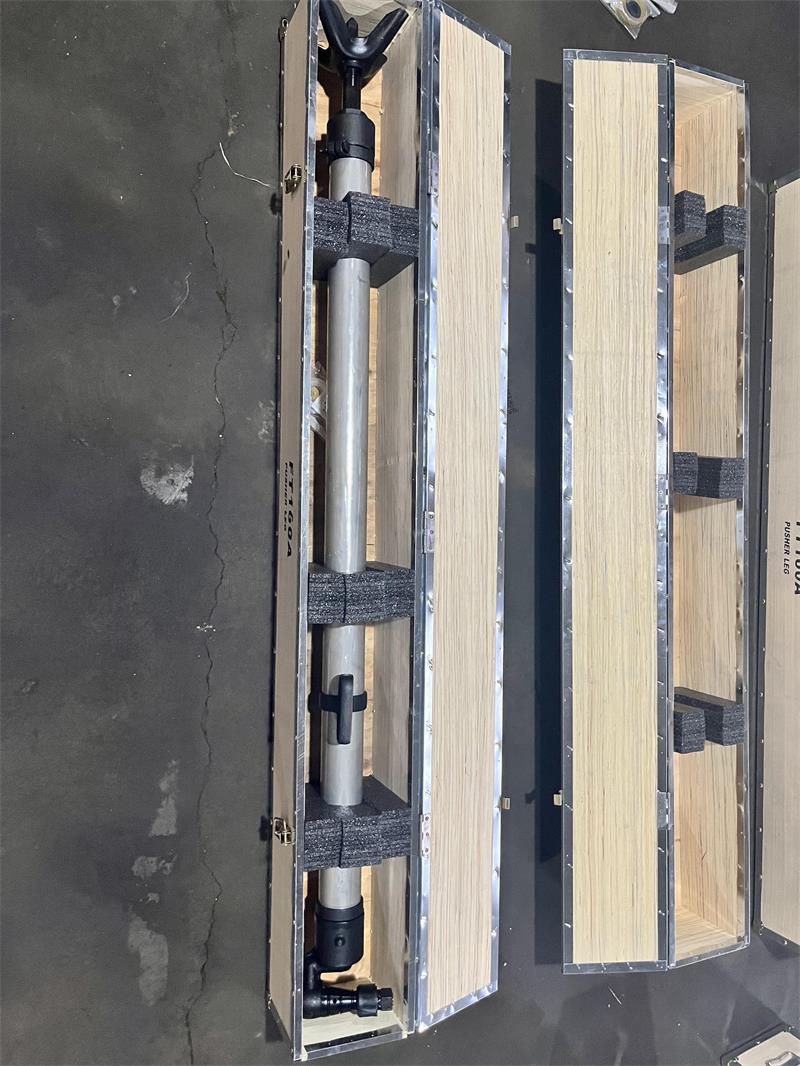

What is the product packaging? Professional export packaging, including wooden boxes and cartons.
