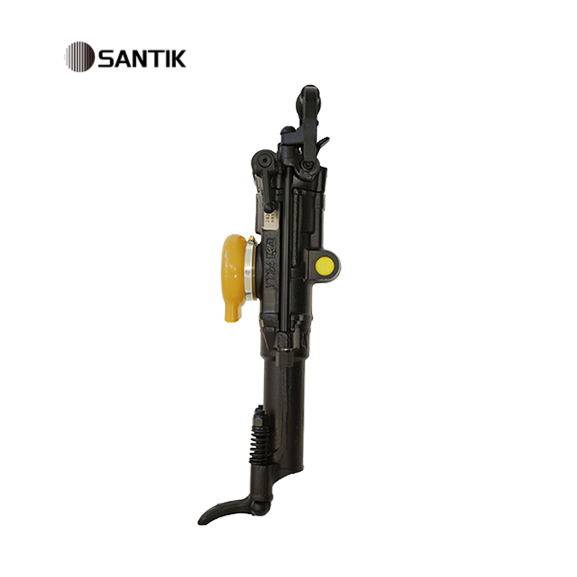

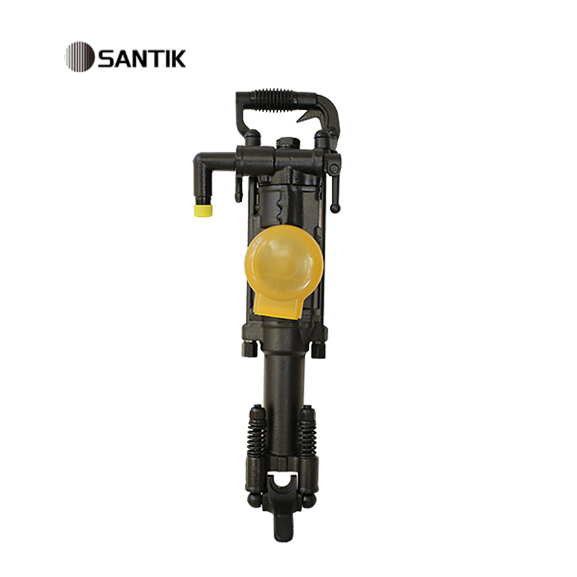

YT24 air powered rock drill-Air leg rock drill-Santik (Shenyang) Mining Equipment Co., Ltd.

Features：

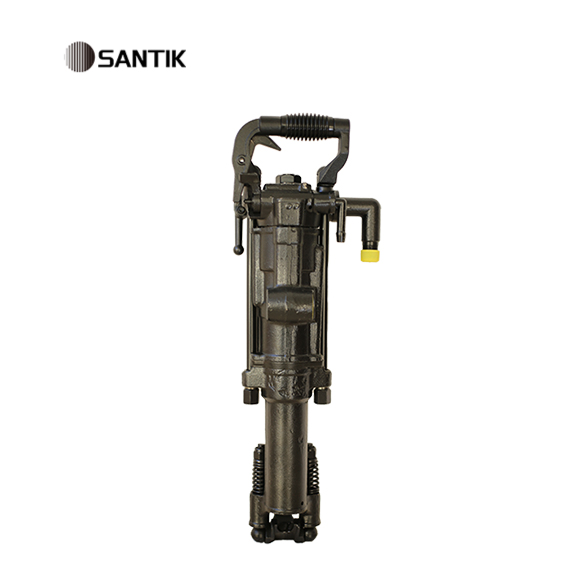

The YT24 is a high-efficiency rock drilling machine, best suited for drilling horizontal or inclined blast holes in medium-hard or hard rocks (f = 8-18). It can be used with either the FT140BD short air leg or the FT140B long air leg, depending on the size of the tunnel cross-section. It can also be mounted on a drill rig or drilling frame. This machine is equipped with the FY200B oiler.

1.Versatile Functionality: The YT24 can be used for both horizontal and inclined drilling, making it adaptable to different work environments and geological conditions.

2.High Drilling Speed: The YT24 boasts a fast drilling speed, significantly improving work efficiency in various mining tasks.

3.Cost-Effective: With low energy consumption and minimal maintenance needs, it offers a good balance of performance and operational cost savings.

Model	YT24
Weight(kg)	24
Cylinder Diameter(mm)	70
Piston stroke(mm)	70
Working pressure(Mpa)	0.4~0.63
Water Pressure(Mpa)	Air pressure-0.05
Impact ferquency(Hz)	≥31
Impact energy(J)	——
Air Pipe Inner Diameter(mm)	19
Water Pipe Inner Diameter(mm)	13
Drilling speed(mm/min)	——
Drilling Diameter(mm)	34-42
Maximum Drilling Depth(m)	5
Shank Size(mm)	Hex.H22x108±1

FY200B Lubricator
Oil volume	0.2		L

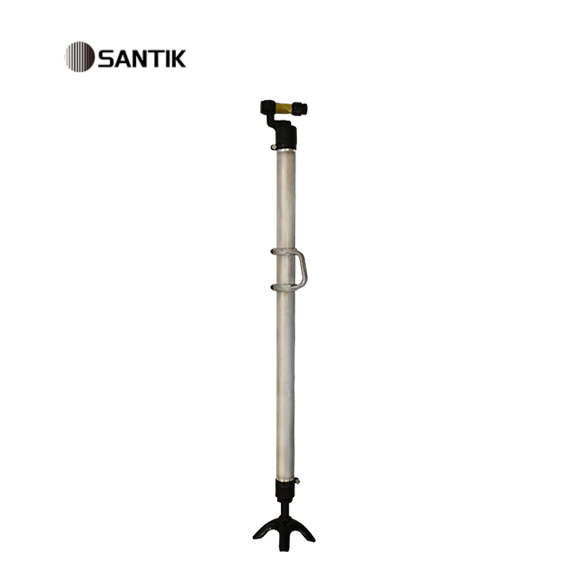

Air leg
	FT140B	FT160BD
Length	1687	1400	mm
Feed length	1250	965	mm
cylinder inner diameter	60	60	mm
Weight	≈15.6	≈13.9	kg

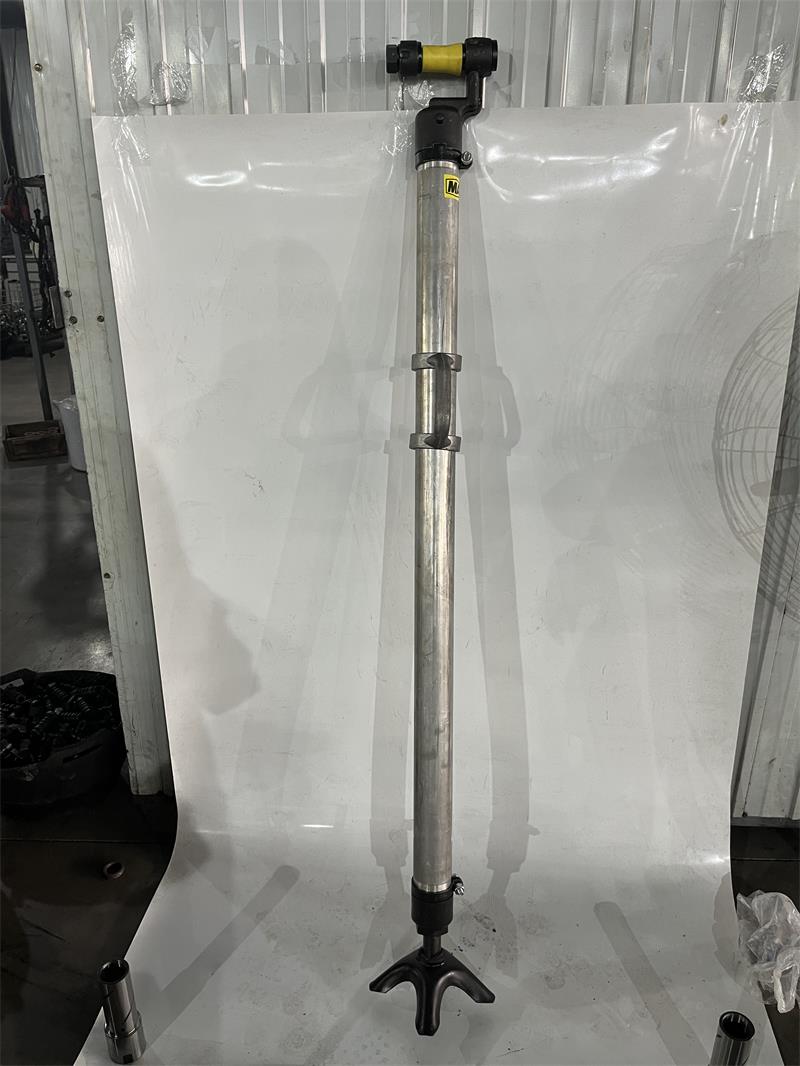

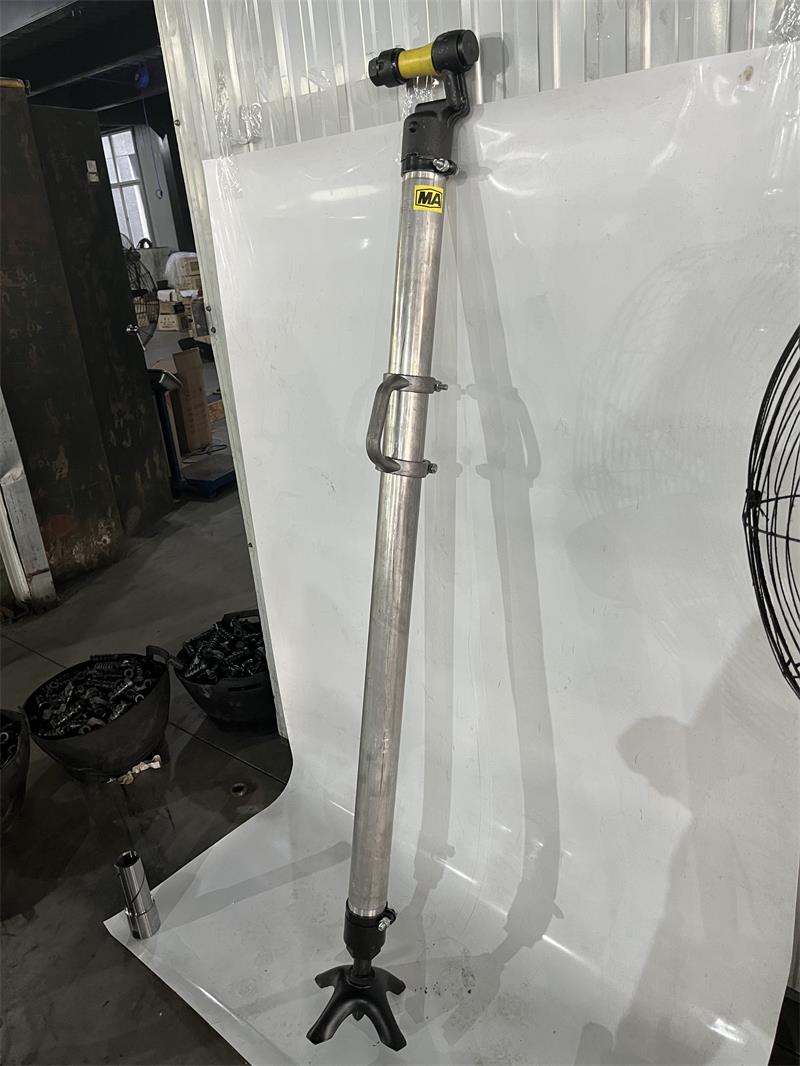

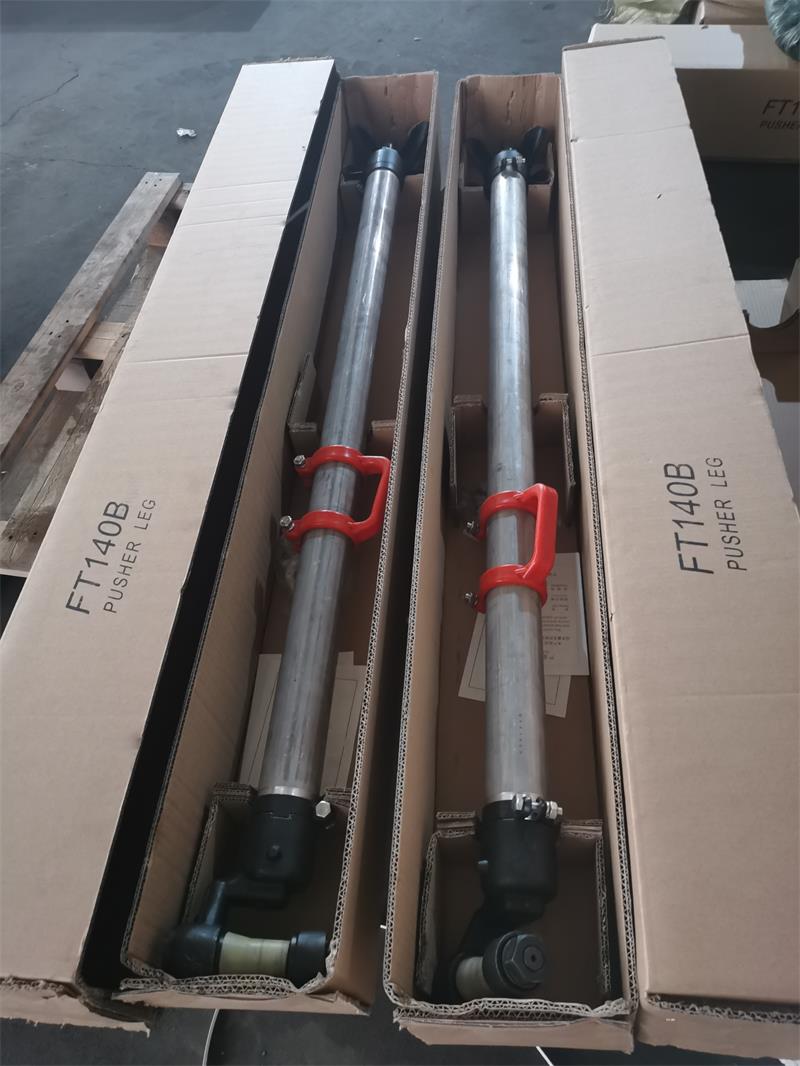

FT140B air leg YT24 air leg rock drill (2).jpg

FAQs：

Do you accept customize? Yes, we have our own factory.

Can you print our logo or company name? Yes, we could print your logo or company name on the display or the machine shells.

Can you design for us? Yes, we have professional designer, please tell us your requirements, well do it for you.

Is it possible to get a sample at a special price? Yes, to demonstrate our confidence in our machines, we can offer distributors a sample machine at a very favorable price to support their initial advertising efforts.

How to operate? We offer three methods: All machines come with a manual that guides you on assembly, adjustment, and usage. Our sales staff will provide one-on-one assistance. you can download the operation manual from the Download Center on our website.

What is the delivery time? The delivery time for 30 sets of machines is about 5 days, and for up to 100 sets, it is within 15 days. For 300 sets, the delivery time is within 1 month. Larger quantities will require communication to confirm the exact delivery date.

What is the warranty period? The warranty is one year (excluding normal wear and tear of parts.

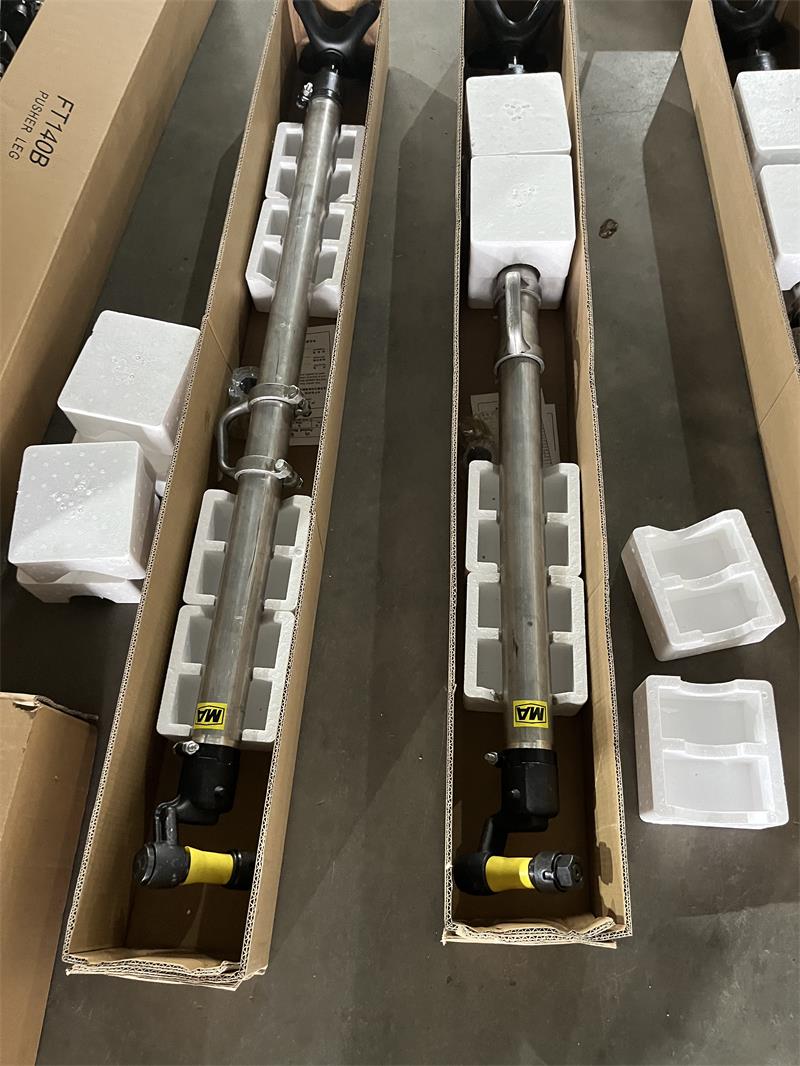

What is the product packaging? Professional export packaging, including wooden boxes and cartons.
