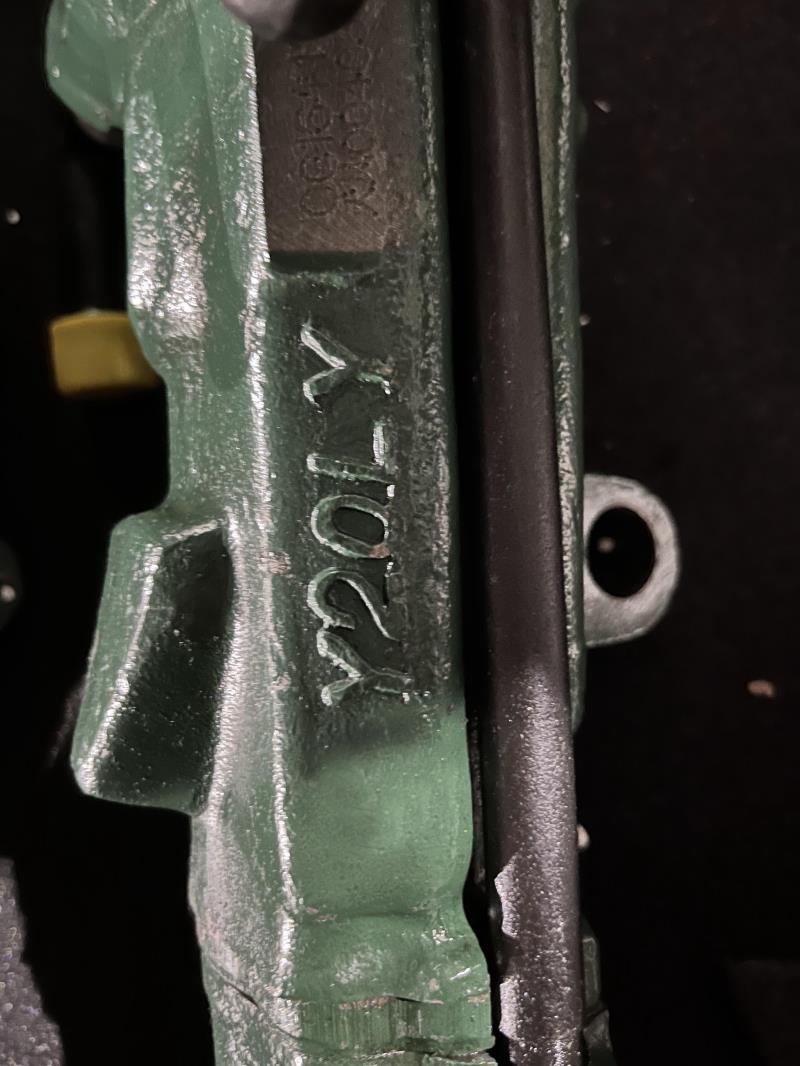

Y20LY breaker hammer

keyword:

Hand held jack

Hand held hammer

Air drill

Classification:

Handheld rock drill

Email: info@santik.net
elia@santik.com

Inquiry Now

Get help on WhatsApp

Description

FAQS

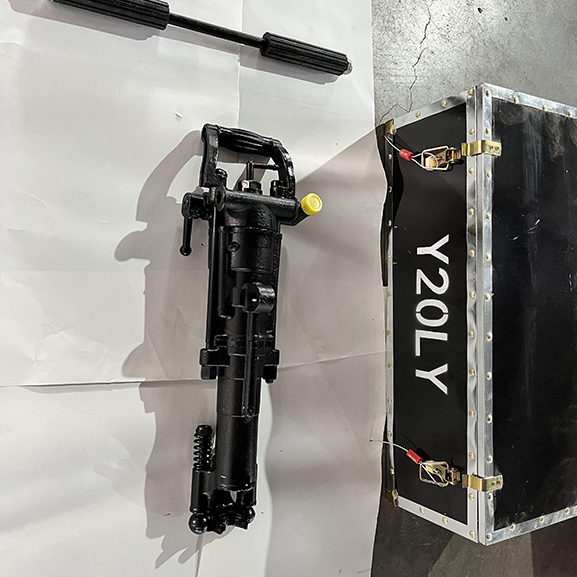

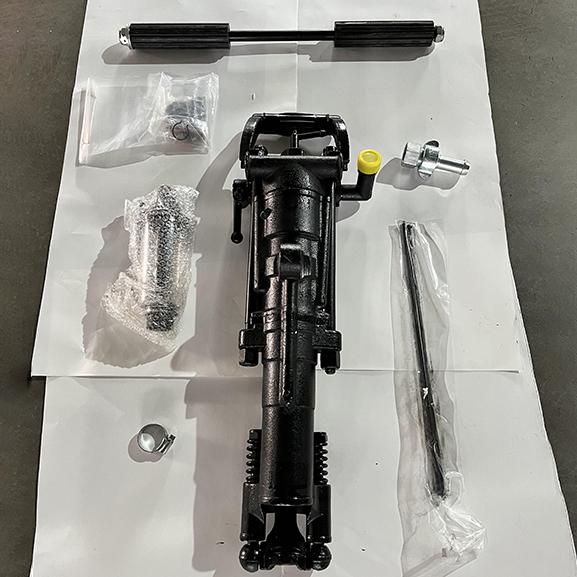

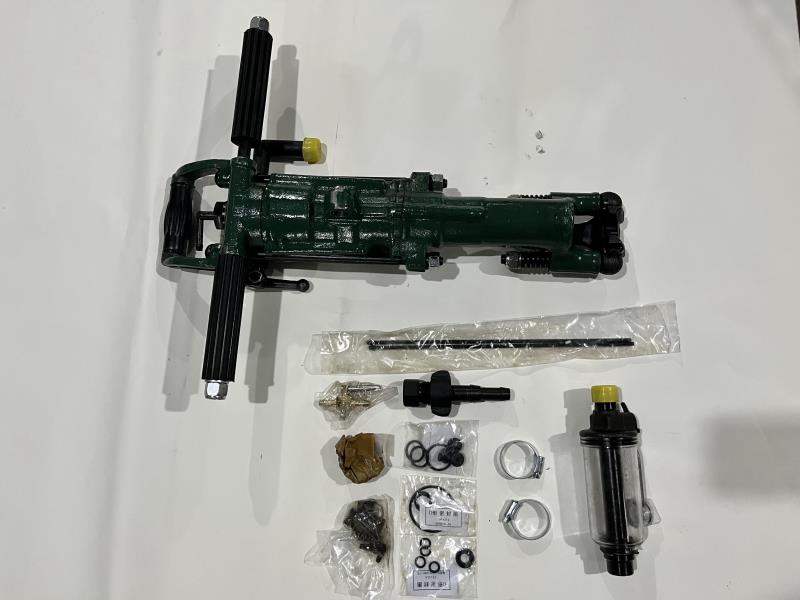

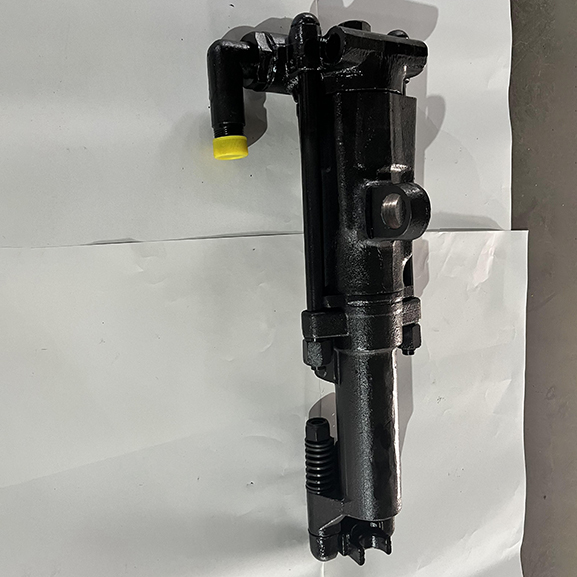

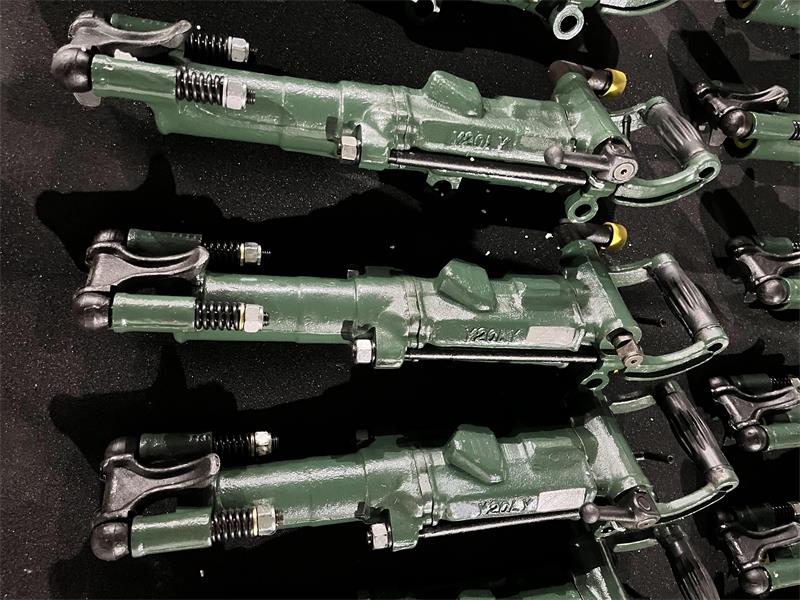

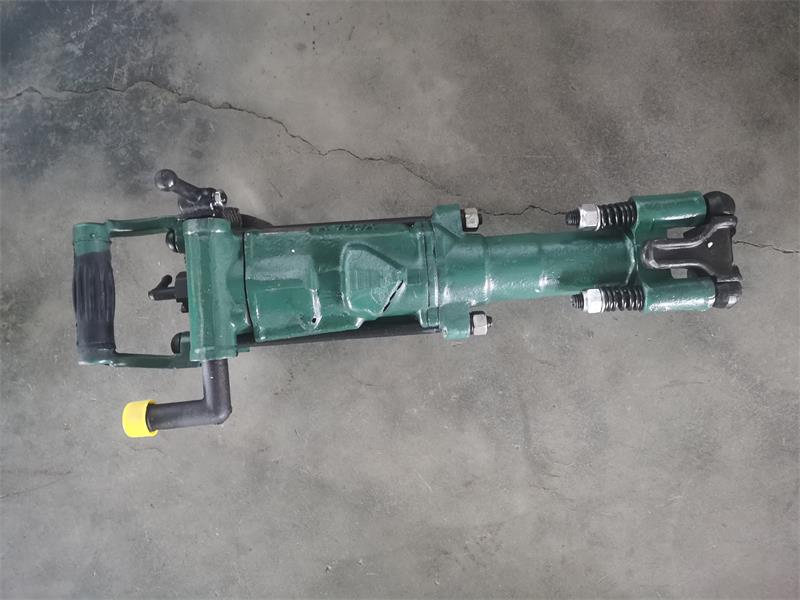

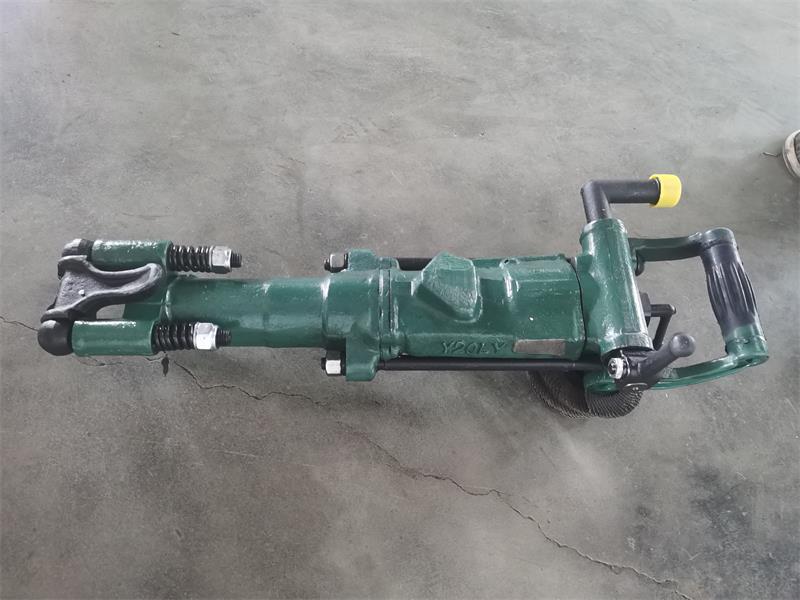

The Santik Y20LY hand-held air-leg dual-purpose rock drill is a lightweight drilling machine suitable for dry or wet operations on medium-hard and hard rocks (f=8-18). It is capable of drilling blast holes with a diameter of 34-40 mm, and the effective drilling depth can reach up to 3 meters.

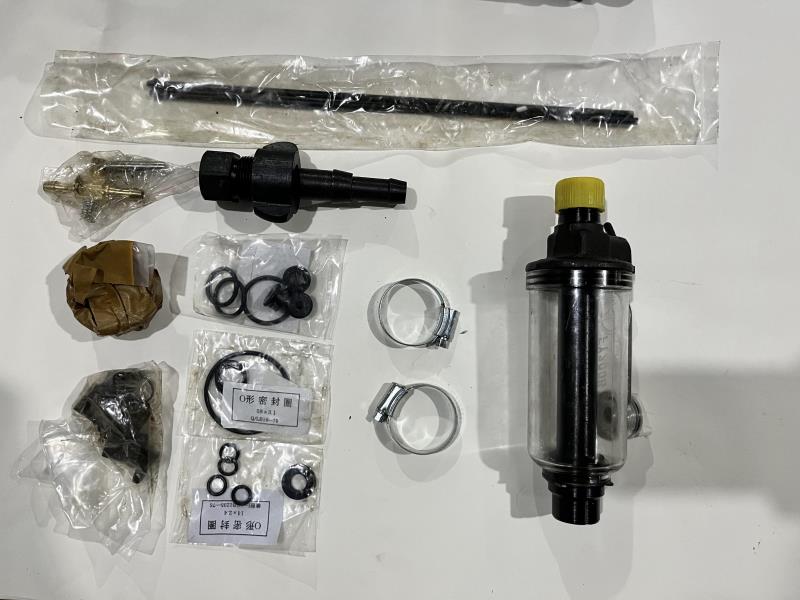

This machine can be used for downward drilling when handheld, and when equipped with the FT100 air leg, it can function as an air-leg rock drill, capable of drilling horizontal and inclined blast holes in various chambers. It is also equipped with the FY200B oil injector, which features a transparent casing.

	Y20LY
Weight(kg)	18
Length(mm)	609
Cylinder Diameter(mm)	60
Piston stroke(mm)	50
Working pressure(Mpa)	0.4`0.5
Water Pressure(Mpa)	0.2~0.3
Air Pipe Inner Diameter(mm)	16/19
Water Pipe Inner Diameter(mm)	8
Air consumption(L/s)	≤25
Impact energy(J)	——
Impact frequency(HZ)	≥30
Drilling Diameter(mm)	34~40
Maximum Drilling Depth(m)	3
Shank Size(mm)	H22*108±1

FAQs：

Do you accept customize? Yes, we have our own factory.

Can you print our logo or company name? Yes, we could print your logo or company name on the display or the machine shells.

Can you design for us? Yes, we have professional designer, please tell us your requirements, well do it for you.

Is it possible to get a sample at a special price? Yes, to demonstrate our confidence in our machines, we can offer distributors a sample machine at a very favorable price to support their initial advertising efforts.

How to operate? We offer three methods: All machines come with a manual that guides you on assembly, adjustment, and usage. Our sales staff will provide one-on-one assistance. you can download the operation manual from the Download Center on our website.

What is the delivery time? The delivery time for 30 sets of machines is about 5 days, and for up to 100 sets, it is within 15 days. For 300 sets, the delivery time is within 1 month. Larger quantities will require communication to confirm the exact delivery date.

What is the warranty period? The warranty is one year (excluding normal wear and tear of parts.

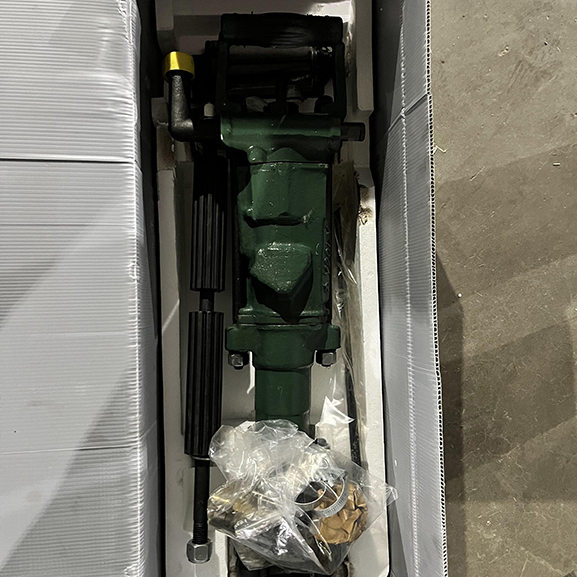

What is the product packaging? Professional export packaging, including wooden boxes and cartons.
