Y5 small jackhammer
Y5 small jackhammer
keyword:
Handheld rock drill
Pneumatic rock drill
Pneumatic drills
Classification:
Handheld rock drill
Description
FAQS

Features:

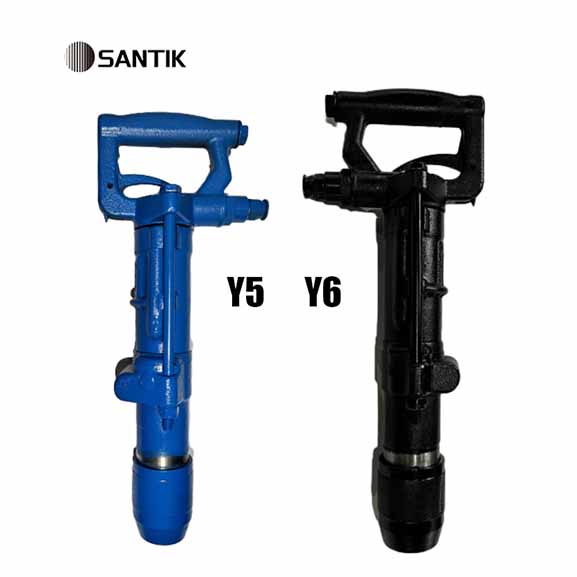

The Y5 is a versatile handheld pneumatic rock drill, designed as a lightweight and compact pneumatic tool. It is primarily used for tasks such as installing pipelines, setting up power lines, and installing anchor bolts on rocks, brick walls, concrete, and other structures. It is also applied in chemical plants, refineries, construction sites, heavy industries, tunnels with hazardous and humid gases, underwater operations, and narrow space tasks. The tool is particularly beneficial in high-gas, explosion-proof mining environments, where its explosion-proof and spark-free design maximizes safety.

1.Lightweight and compact: Easy to handle and maneuver.

2.Impact rotation, pure impact, and clockwise rotation: Offers versatility for various tasks.

3.Explosion-proof and spark-free: Ensures high safety performance, especially in high-risk environments.





Y5

Weight(kg)

4.5

Length(mm)

366

Cylinder Diameter(mm)

34

Piston stroke(mm)

32

Working pressure(Mpa)

0.5~0.6

Water Pressure(Mpa)

——

Air Pipe Inner Diameter(mm)

10

Water Pipe Inner Diameter(mm)

——

Air consumption(L/s)

≤12

Impact energy(J)

2.5

Impact frequency(HZ)

≥48

Drilling Diameter(mm)

——

Maximum Drilling Depth(m)

0.2

Shank Size(mm)

Dill bits:8/12/14/16/18/20/24

FAQs:
Do you accept customize? Yes, we have our own factory.
Can you print our logo or company name? Yes, we could print your logo or company name on the display or the machine shells.
Can you design for us? Yes, we have professional designer, please tell us your requirements, well do it for you.
Is it possible to get a sample at a special price? Yes, to demonstrate our confidence in our machines, we can offer distributors a sample machine at a very favorable price to support their initial advertising efforts.
How to operate? We offer three methods: All machines come with a manual that guides you on assembly, adjustment, and usage. Our sales staff will provide one-on-one assistance. you can download the operation manual from the Download Center on our website.
What is the delivery time? The delivery time for 30 sets of machines is about 5 days, and for up to 100 sets, it is within 15 days. For 300 sets, the delivery time is within 1 month. Larger quantities will require communication to confirm the exact delivery date.
What is the warranty period? The warranty is one year (excluding normal wear and tear of parts.
What is the product packaging? Professional export packaging, including wooden boxes and cartons.
