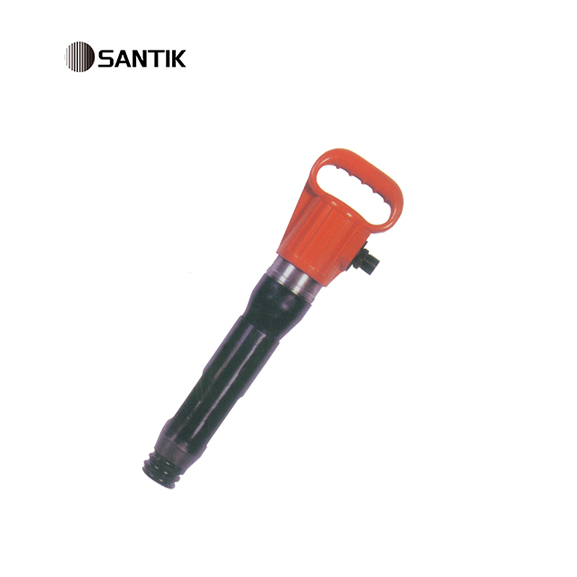

G10 pneumatic breaker
G10 pneumatic breaker
keyword:
Air tools
jack hammer for sale
Small jackhammer
Classification:
Pneumatic jack hammer breaker
Description
FAQS

The G10 pneumatic breaker is designed for efficiency and durability, featuring a lightweight structure, user-friendly operation, and an automatic stop function after breaking the target material. This high-performance tool is widely used in coal mining, including coal extraction and soft rock excavation. It is also ideal for digging column foot pits, trenching water ditches, and breaking concrete and frozen soil in construction and infrastructure projects. Additionally, the G7 excels in mechanical operations requiring impact motion, such as the installation and removal of tractor and tank track pins. Its robust design and reliable performance make it a top choice for professionals in mining, construction, and heavy machinery maintenance.

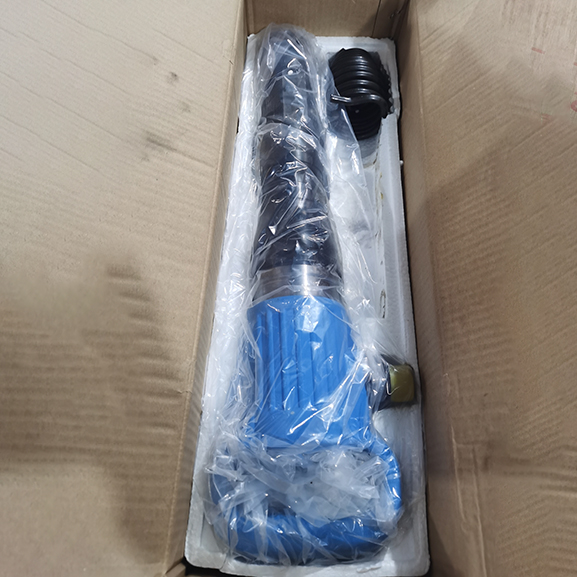

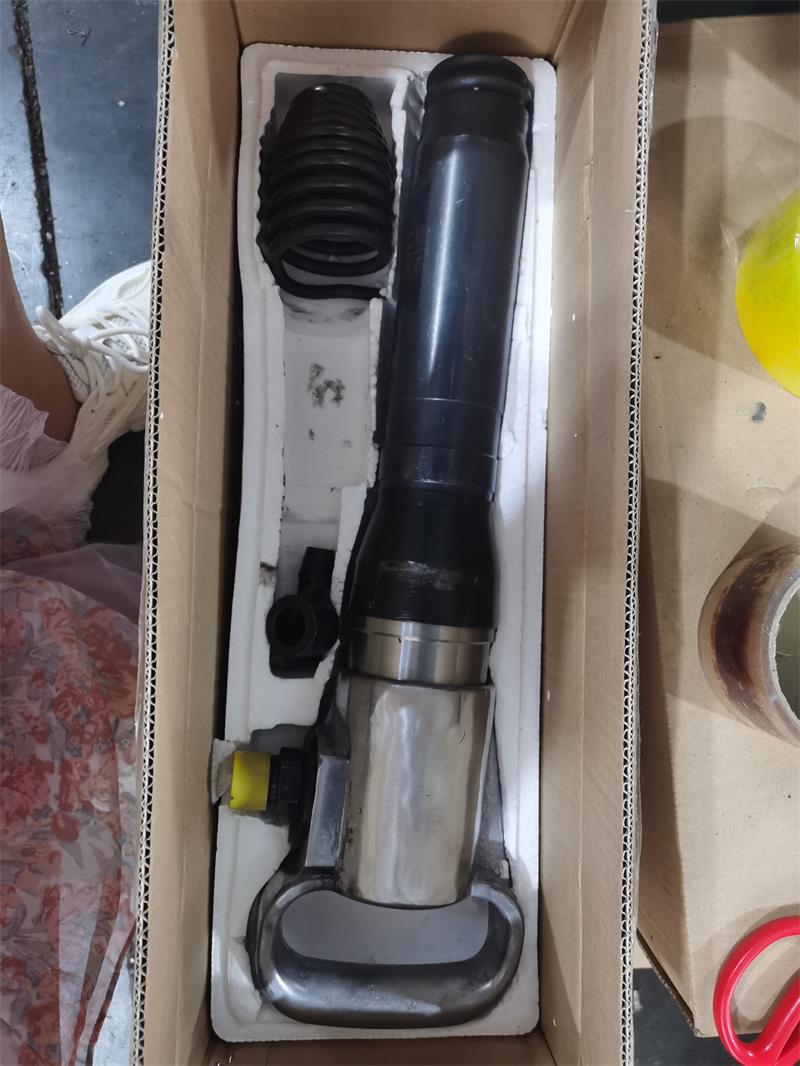

IMG_20220522_151810.jpg IMG_20220824_172916.jpg





G10

Weight

10.6

Length(mm)

575

Cylinder Diameter(mm)

38

Piston stroke(mm)

155

Working pressure(Mpa)

0.4-0.63

Air Pipe Inner Diameter(mm)

16

Impact frequency(HZ)

≥15(at 0.4Mpa)

≥16.5(at 0.5Mpa)

≥16.5(at 0.63Mpa)

Air consumption(L/s)

≤16(at 0.4Mpa)

≤20(at 0.5Mpa)

≤20(at 0.5Mpa)

Impact energy(J)

≥32(at 0.4Mpa)

≥39.3(at 0.5Mpa)

≥43(at 0.63Mpa)

Shank Size(mm)

——
