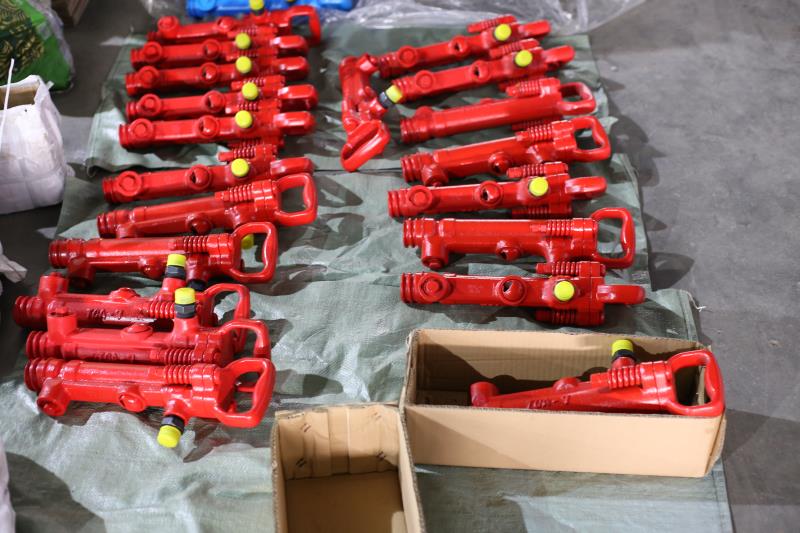

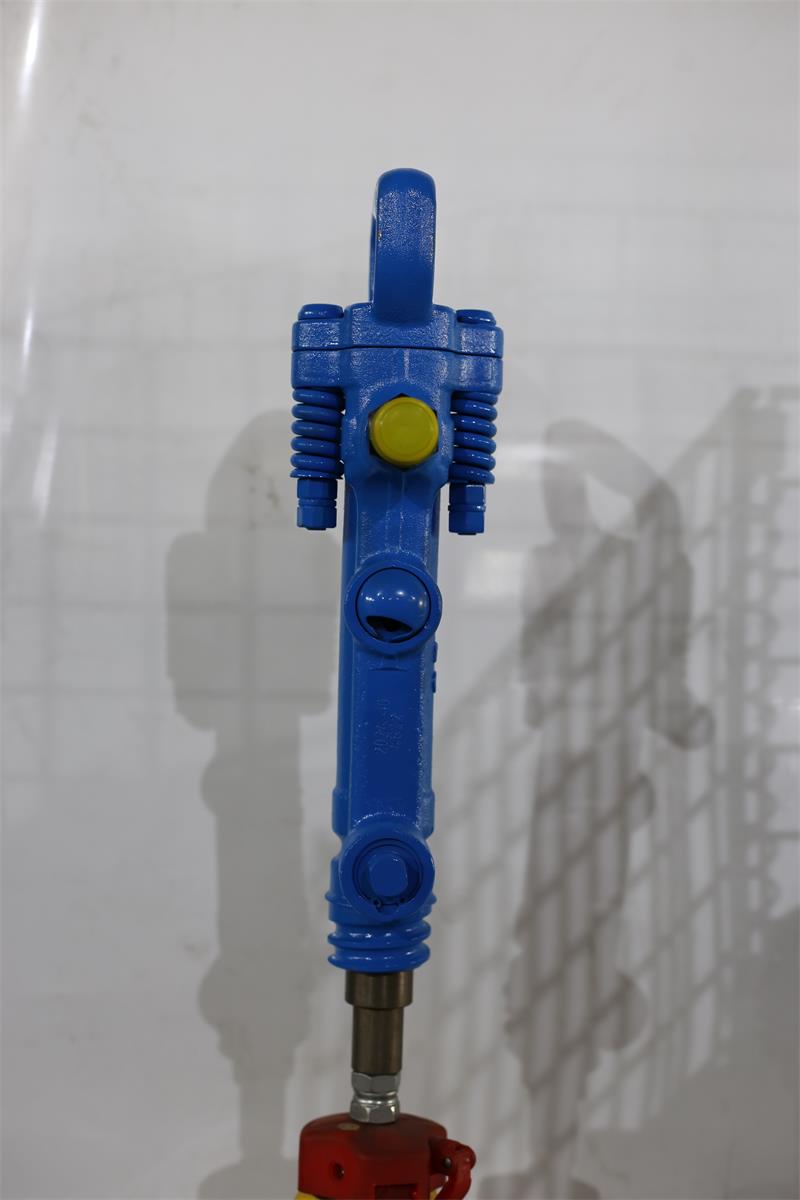

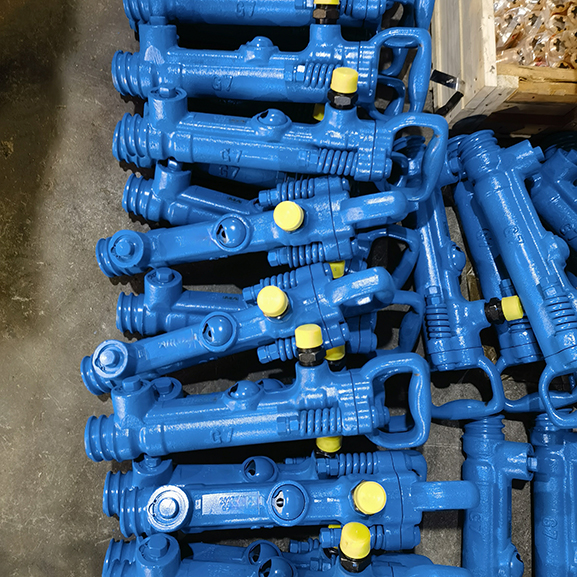

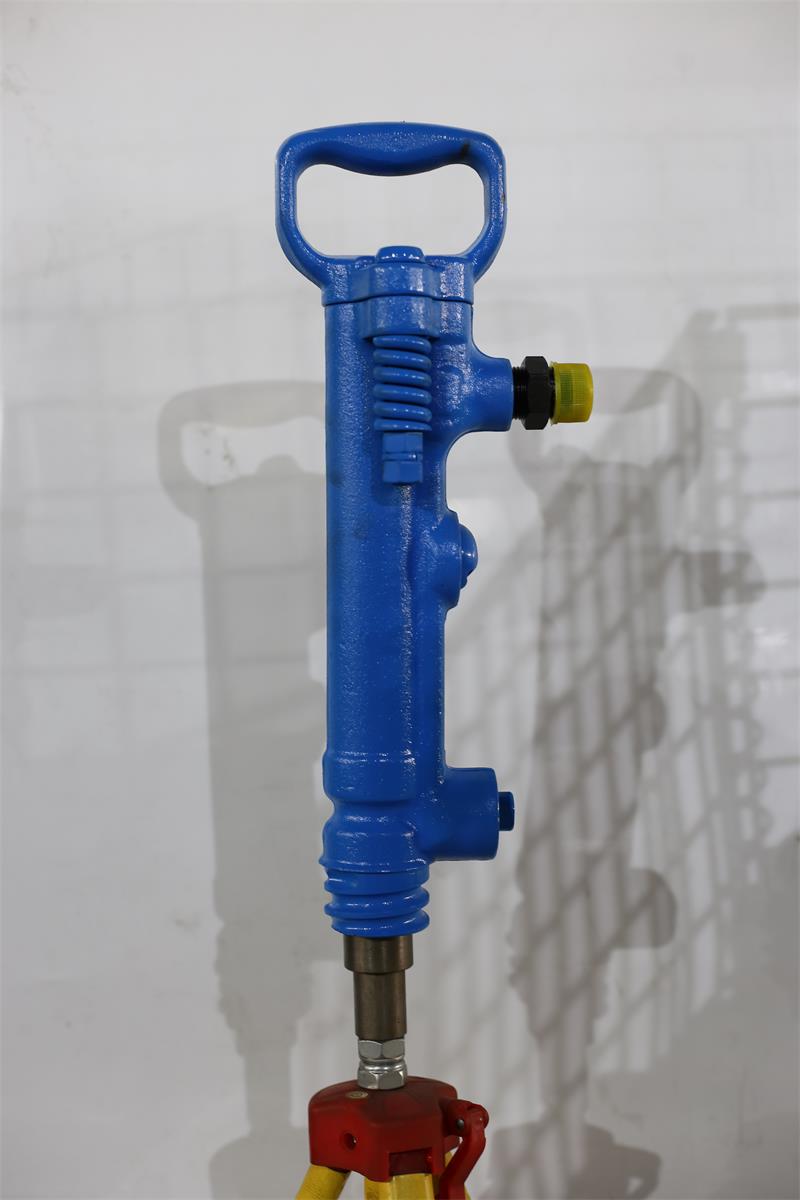

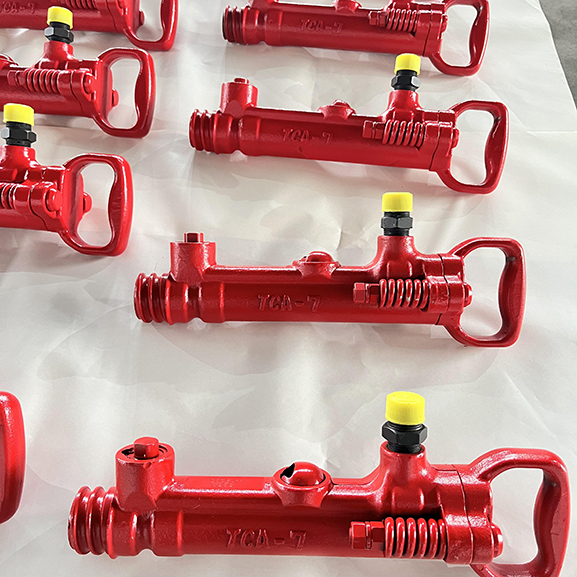

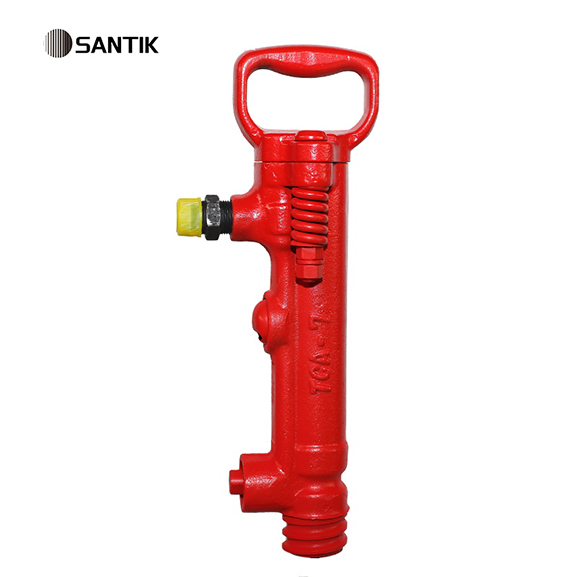

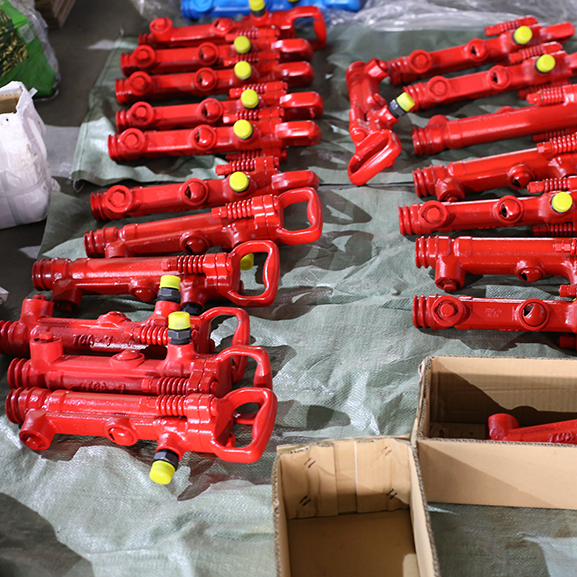

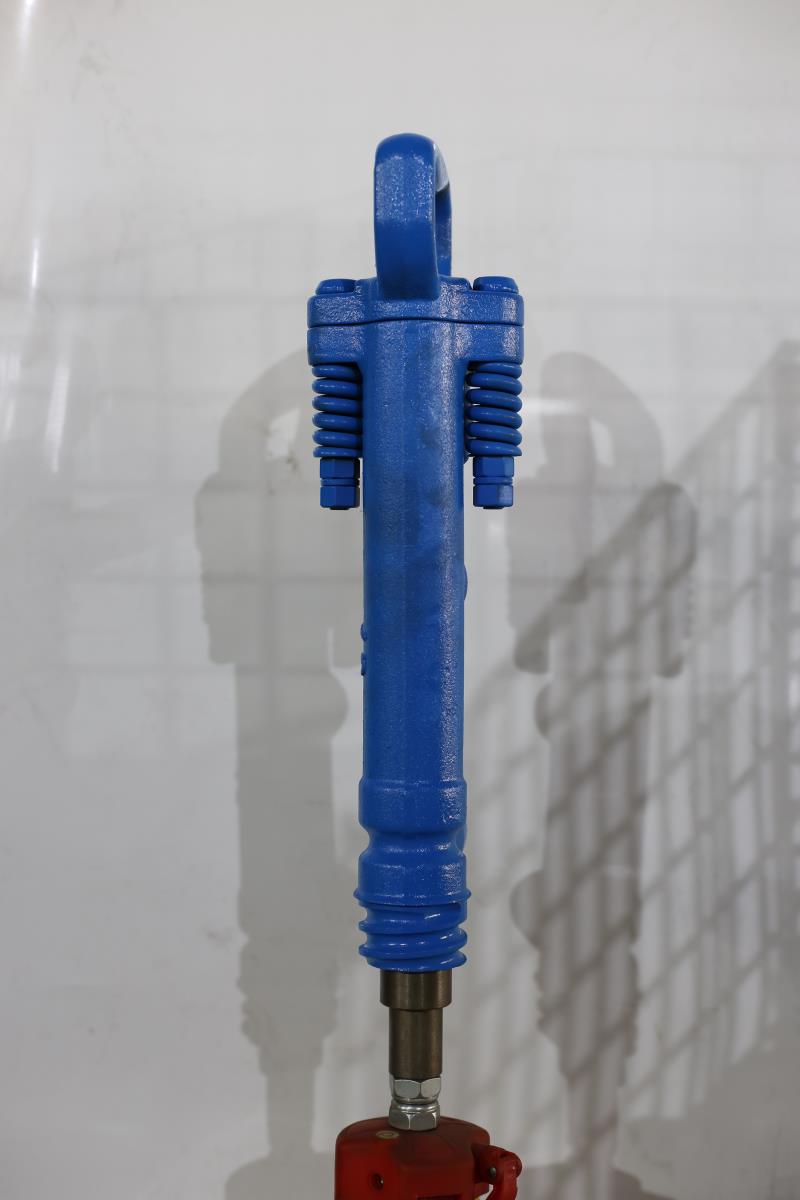

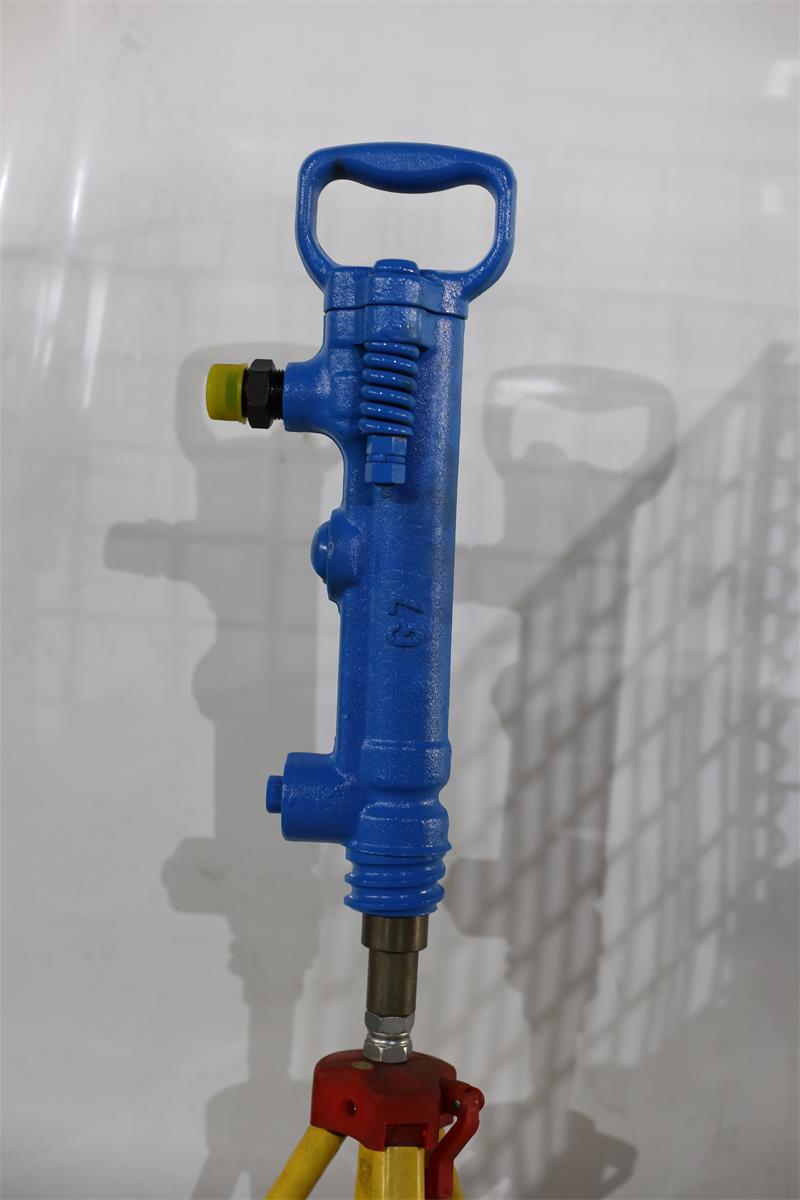

The G7(TCA-7)features a lightweight design, simple structure, easy operation, and automatic stop after breaking the material. It is widely used in coal mining for coal extraction and soft rock excavation; digging column foot pits and water ditches; breaking concrete and frozen soil in construction and installation projects; and applications requiring impact motion in mechanical operations, such as the installation and removal of tractor and tank track pins.
 |
 |
 |
 |
|
G7 |
|
|
Weight |
7.2 |
|
Length(mm) |
465 |
|
Cylinder Diameter(mm) |
35 |
|
Piston stroke(mm) |
120 |
|
Working pressure(Mpa) |
0.4-0.63 |
|
Air Pipe Inner Diameter(mm) |
19 |
|
Impact frequency(HZ) |
≥20(at 0.4Mpa) |
|
≥21.6(at 0.5Mpa) |
|
|
≥21.6(at 0.63Mpa) |
|
|
Air consumption(L/s) |
≤15(at 0.4Mpa) |
|
≤20(at 0.5Mpa) |
|
|
≤26(at 0.5Mpa) |
|
|
Impact energy(J) |
≥23(at 0.4Mpa) |
|
≥30(at 0.5Mpa) |
|
|
≥33(at 0.63Mpa) |
|
|
Shank Size(mm) |
φ26*80 |
 |
